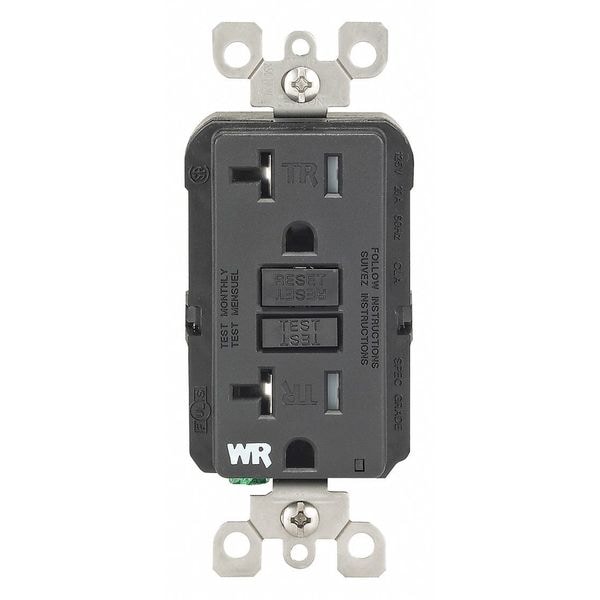

Leviton GFI Receptacle GFWT2-E - main

GFI Receptacle

  • Mfr # GFWT2-E

  • Zoro # G904392901

product price: $25.99
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GFWT2-E
Zoro #
G904392901
UPC #
07847770920
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG
Overall Depth
1 in
Face Plate Width
1.3 in
Face Plate Height
2.7 in
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Black
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
No
Standards
ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed
Weather Resistant - Plugs and Receptacles
Yes
Amps - Plugs and Receptacles
20 A
Wiring Method
Back, Side
Weather Resistant
Yes
Voltage
125 VAC
Outlet Type - Plugs and Receptacles
Standard Duplex
Type
GFCI
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Reset Type
Automatic
HP
1 hp
Power Indicator
Yes
Mounting Type - Plugs and Receptacles
Flush
Color - Plugs and Receptacles
Black
Self-Testing
Yes
Item - Plugs and Receptacles
GFCI Receptacle
Wiring Method - Plugs and Receptacles
Back and Side
Color
Black
Special Features
Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
Application Environment
Commercial
Tamper Resistant
Yes
Voltage - Plugs and Receptacles
125V
Surge Suppression
Yes
Grade
Federal Specification
Receptacle Type
Decorator Duplex
Horsepower Rating
1 hp
Wire Connection Type
Screw Terminals
Voltage Rating
125V AC
For Location
Outdoor
Minimum Operating Temperature
-31 Degrees F
Resistance Properties
Impact Resistant, Tamper Resistant, Weather Resistant
Visual Indicator Lights
Power Connected
Self Testing
Yes
Contact Material
Brass
Mount Type
Flush
Market
Commercial, Residential
Hub Type
Feed Through
Surge Protection
Yes
Includes Mounting Hardware
Yes
Reverse Service
Yes
Maximum Operating Temperature
150.8 Degrees F
Temperature Rise
Max 30C after 100 cycles OL at 150 percent rated current
Yoke
Stainless Steel
NEMA
5-20R
CSA C22.2 No. 42
Yes
Terminal Screws
Stainless Steel
Trip Level
Class A, 5mA plus or minus 1mA
Fed Spec WC-596
Yes
ANSI
C-73
Terminal Accom.
14-10 AWG
Clamps
Brass
At Rated Voltage
1 HP
UL498
Yes
Short Circuit Current Rating
10KA
Feature
Self-Test
Line Contacts
Brass Triple-Wipe .031 Thick
UL 943
File E48380
Operating Temperature
-35C to +66C
Terminal ID
Brass-Hot, Green-Ground, Silver-Neutral
Pole
2
Face Material
Polypropylene
Standards and Certifications
UL/CSA, NEMA WD6
Amperage
20 A
Grounding Screw
Stainless Steel
Wire
3
Termination
Back & Side
CSA-C22.2 No. 144.1-06
File LR-57811
Dielectric Voltage
Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Body Material
Polycarbonate
Strap Material
Stainless Steel

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Housing Color Black, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized No, Receptacle Type Decorator Duplex, Resistance Properties Impact Resistant, Tamper Resistant, Weather Resistant
