Shop LEVITON

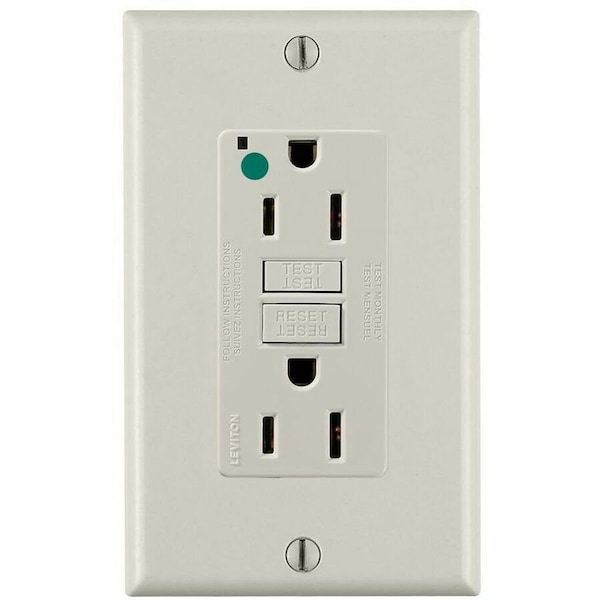

GFIRcptcl, 15A, 125VAC, Almnd, Polycarb

  • Mfr # GFNT1-HGT

  • Zoro # G704392910

product price:
$
34.15
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFNT1-HGT
Zoro #
G704392910
UPC #
07847772500
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Overall Depth
1.4 in
Face Plate Width
1.7 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Number of Outlets
2
Housing Color
Light Almond
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
Outlet Type - Plugs and Receptacles
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Self-Testing
Yes
Surge Suppression
Yes
Amps - Plugs and Receptacles
15 A
Wiring Method - Plugs and Receptacles
Back and Side
HP
1 hp
Special Features
Cold Impact Resistance, UV Stabilized Plastics
Application Environment
Hospital Grade
Voltage - Plugs and Receptacles
125V
Item - Plugs and Receptacles
GFCI Receptacle
Tamper Resistant
No
Power Indicator
Yes
Color - Plugs and Receptacles
Light Almond
Weather Resistant - Plugs and Receptacles
No
Wiring Method
Back/Side
Wire Connection Type
Screw Terminals
Mount Type
Flush
Includes Mounting Hardware
Yes
Voltage Rating
125V AC
Maximum Operating Temperature
150.8 Degrees F
Includes
Power Indication, Wallplate
Receptacle Type
Decorator Duplex
Visual Indicator Lights
Power Connected
Minimum Operating Temperature
-31 Degrees F
Self Testing
Yes
Contact Material
Brass
UL 94 Flammability Rating
V-0
Horsepower Rating
1 hp
Grade
Hospital Grade Fed. Spec.
Surge Protection
Yes
AFCI
No
Number of Gangs
1
Status Indicator Lights
Power Connected
IP Rating
Not Rated
Flange Type
Non-Flanged
Shrouded
No
Number of Wall Plates Included
0

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Light Almond, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable

Documents & Resources

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
