Shop LEVITON

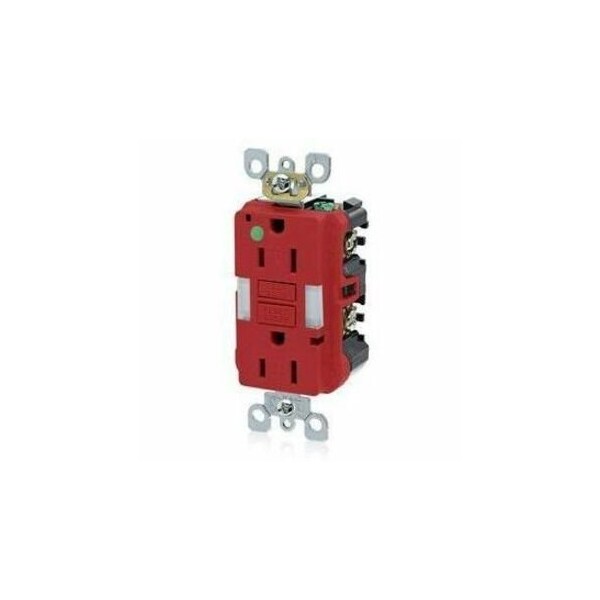

GFIRcptcl, 15A, 125VAC, Rd, Thermoplastic

  • Mfr # GFNL1-HGR

  • Zoro # G504392943

product price:
$
45.45
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
GFNL1-HGR
Zoro #
G504392943
UPC #
07847772357
Country of Origin
China

Dimensions

Face Plate Height
2.7 in
Overall Depth
1.4 in
Minimum Wire Size
14 AWG
Face Plate Width
1.7 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Item
GFI Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
15 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Red
Number of Outlets
2
Housing Material
Thermoplastic
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-15R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA C22.2 No. 42 and 144, CSA Certified, Federal Specification W-C-596, NEMA WD-1 and WD-6, NOM-ANCE, UL 498, UL 943, UL Listed
Voltage - Plugs and Receptacles
125V
Amps - Plugs and Receptacles
15 A
Application Environment
Hospital Grade
HP
1 hp
Wiring Method
Back/Side
Power Indicator
Yes
Surge Suppression
Yes
Color - Plugs and Receptacles
Red
NEMA Configuration
5-15
Wiring Method - Plugs and Receptacles
Back and Side
Tamper Resistant
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-15R
Special Features
Custom Designed Lenses with Edge-Mounted LEDs, Dual Lens, Saves Space, Sensor Provides Automatic ON/OFF Illumination
Self-Testing
Yes
Item - Plugs and Receptacles
GFCI Receptacle
Weather Resistant - Plugs and Receptacles
No
Outlet Type - Plugs and Receptacles
Duplex
Minimum Operating Temperature
-31 Degrees F
Maximum Operating Temperature
150.8 Degrees F
Number of Poles & Wires
2 Pole / 3 Wire
Includes Mounting Hardware
Yes
Includes
Strap Material
Self Testing
Yes
Surge Protection
Yes
Additional Electrical Protections
GFCI & Surge Protection
Contact Material
Brass
Key Resistance Properties
Tamper Resistant
Visual Indicator Lights
Power Connected
Horsepower Rating
1 hp
Additional Electrical Protection
GFCI, Surge Protection
Mount Type
Flush
Resistance Properties
Tamper Resistant
UL 94 Flammability Rating
V-0
Wire Connection Types
Screw Terminals
Wire Connection Type
Screw Terminals
Voltage Rating
125V AC
Receptacle Type
Decorator Duplex
Grade
Hospital Grade Fed. Spec.
AFCI
No
Number of Wall Plates Included
0
Status Indicator Lights
Power Connected
IP Rating
Not Rated
Shrouded
No
Number of Gangs
1
Flange Type
Non-Flanged

Description

GFI Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Thermoplastic, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Tamper Resistant
