- MFR #
- GFWT2-W
- Zoro #
- G004392917
- UPC #
- 07847770919
- Country of Origin
- China
- Item

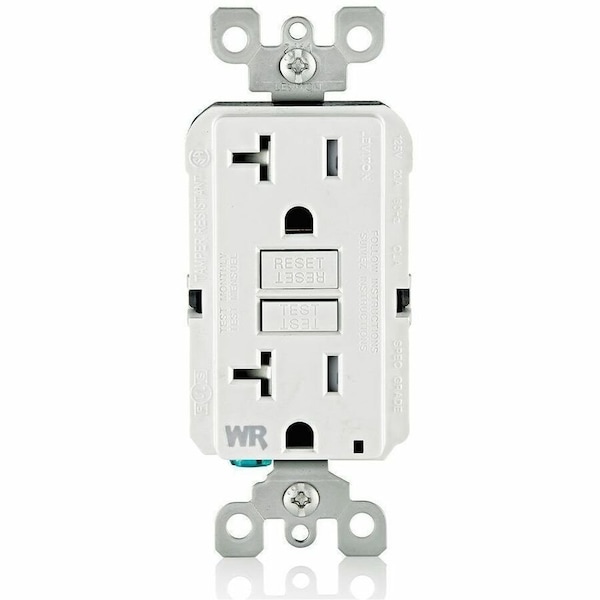

- GFI Receptacle
- Connection Orientation
- Straight
- Cover Type
- No Cover
- Current Rating
- 20 A
- GFCI
- Yes
- Phase
- Single
- Grounding
- Grounded
- Number of Outlets
- 2
- Housing Color
- White
- Housing Material
- Polycarbonate
- NEMA Enclosure Rating
- Not Rated
- NEMA Receptacle Configuration
- 5-20R
- Number of Poles
- 2
- Number of Wires
- 3
- Polarized
- No
- Standards
- ANSI, CSA Certified, Federal Specification, MIL-SPEC, NOM Certified, RoHS Compliant, UL Listed
- Item - Plugs and Receptacles
- GFCI Receptacle
- HP
- 1 hp
- Color - Plugs and Receptacles
- White
- Special Features
- Auto Adapts and Shifts, Auto-Monitoring, Continuous Ground Fault Protection, Over-Voltage Resistant, Patented Lockout Action Prevents Reset, Standard Brass Self-Grounding Clip
- Application Environment
- Commercial
- Mounting Type - Plugs and Receptacles
- Flush
- Outlet Type - Plugs and Receptacles
- Standard Duplex
- Power Indicator
- Yes
- Wiring Method - Plugs and Receptacles
- Back and Side
- Wiring Method
- Back/Side
- Voltage
- 125 VAC
- Tamper Resistant
- Yes
- Voltage - Plugs and Receptacles
- 125V
- Surge Suppression
- Yes
- NEMA Receptacle Configuration - Plugs and Receptacles
- 5-20R
- Color
- White
- Type
- GFCI
- Weather Resistant - Plugs and Receptacles
- Yes
- Self-Testing
- Yes
- Amps - Plugs and Receptacles
- 20 A
- Weather Resistant
- Yes
- Reset Type
- Automatic
- Visual Indicator Lights
- Power Connected
- Voltage Rating
- 125V AC
- Receptacle Type
- Decorator Duplex
- Mount Type
- Flush
- Grade
- Federal Specification
- Surge Protection
- Yes
- Market
- Commercial, Residential
- Contact Material
- Brass
- Horsepower Rating
- 1 hp
- For Location
- Outdoor
- Minimum Operating Temperature
- -31 Degrees F
- Maximum Operating Temperature
- 150.8 Degrees F
- Includes Mounting Hardware
- Yes
- Reverse Service
- Yes
- Wire Connection Type
- Screw Terminals
- Resistance Properties
- Impact Resistant, Tamper Resistant, Weather Resistant
- Self Testing
- Yes
- At Rated Voltage
- 1 HP
- Short Circuit Current Rating
- 10KA
- Termination
- Back & Side
- Body Material
- Polycarbonate
- Fed Spec WC-596
- Yes
- Face Material
- Polypropylene
- Terminal Accom.
- 14-10 AWG
- UL498
- Yes
- Grounding Screw
- Stainless Steel
- Strap Material
- Stainless Steel
- Amperage
- 20 A
- CSA-C22.2 No. 144.1-06
- File LR-57811
- Operating Temperature
- -35C to +66C
- Line Contacts
- Brass Triple-Wipe .031 Thick
- Yoke
- Stainless Steel
- Terminal Screws
- Stainless Steel
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Feature
- Self-Test
- Standards and Certifications
- UL/CSA, NEMA WD6, NEMA WD1
- Trip Level
- Class A, 5mA plus or minus 1mA
- Temperature Rise
- Max 30C after 100 cycles OL at 150 percent rated current
- Pole
- 2
- Wire
- 3
- UL 943
- File E48380
- NEMA
- 5-20R
- ANSI
- C-73
- Clamps
- Brass
- CSA C22.2 No. 42
- Yes
- Dielectric Voltage
- Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
- Number of Gangs
- 1
- IP Rating
- Not Rated
- Shrouded
- No
- AFCI
- No
- Number of Wall Plates Included
- 0
- Flange Type
- Non-Flanged
- Status Indicator Lights
- Power Connected
