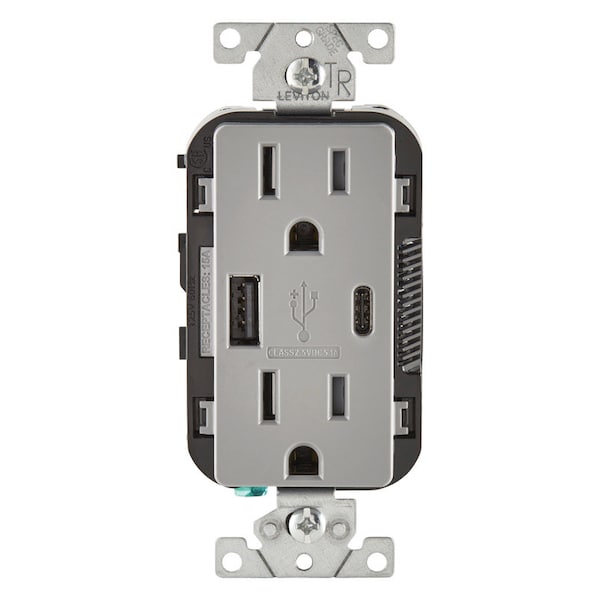

Leviton Decora 15 amps 125 V Type A/C Duplex Gray Outlet and USB Charger 5-15R 1 pk
Mfr # T5633-GY
Zoro # G3859236
product price: $38.15
/eaKey Features
Type
Type A/C Duplex Receptacle
Voltage
125 VAC
Operating Temperature
-10°C to 40°C
Cover Material
Thermoplastic
UL 1310
Yes
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
T5633-GY
Zoro #
G3859236
UPC #
78477841235
Country of Origin
China
Details
Type
Type A/C Duplex Receptacle
Voltage
125 VAC
Color
Gray
Operating Temperature
-10°C to 40°C
Cover Material
Thermoplastic
UL 1310
Yes
Grade
Commercial Specification Grade
Flammability
Rated V-0 per UL 94
Terminal Accom.
14-12 AWG
Horsepower Rating
15A-1/2 HP
NEMA
5-15R
Product Type
Outlet/USB Combo
Amperage
15 A
Strap Material
Steel
Body Material
Thermoplastic
UL 498
Yes
Ratings
15A-125V
Termination
Back & Side
Terminal ID
Brass-Hot Black-Hot White-Neutral Green-Gnd
Listed
cCSAus
Torque Range
14 - 18 in.-lbs
Grounding
Grounding
FCC Part 15
Class B
Description
The Type A and Type-C USB Charger/Tamper-Resistant Receptacle offers superior charging power for smartphones, tablets, laptops, monitors, printers and more. Two high-powered vertical USB Ports, one Type A and one Type-C, deliver a combined total of 5.1A charging current and 25+ watts of power. Smart chip technology recognizes and optimizes the charging requirements of individual devices and the Type-C port enables the cables to be inserted easily in either direction.
- • Side and back wired
- • Easy to install
- • Built-in overcurrent protection helps protect electronics from receiving too much power
- •
- •
