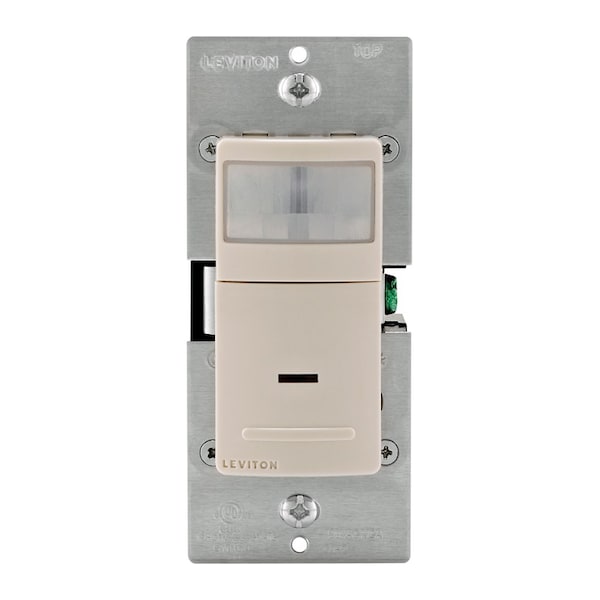

Leviton Decora 2.5 amps Single Pole Motion Sensor Switch Light Almond 1 pk

  • Mfr # DOS02-1LT

  • Zoro # G3904788


product price: $26.99
/ea

Key Features

Switch Type
Relay
Color
Light Almond
Voltage AC
120V AC
Wiring Method
Ground or Neutral Required
Style
Decora
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DOS02-1LT
Zoro #
G3904788
UPC #
78477617991
Country of Origin
China

Details

Switch Type
Relay
Color
Light Almond
Voltage AC
120V AC
Wiring Method
Ground or Neutral Required
Style
Decora
Features
Auto-ON/Auto-OFF
Number of Poles
1
Grade
Residential
Time Delay
1M, 5M, 10M, 20M
Standards
CSA, FCC, Title 24
Coverage Angle - Motion Sensor
180 Degrees
Sensor Type
Occupancy
LED Color
Green and Red
Sensor Technology
Passive Infrared
Load Rating
150W LED/CFL, 250W Incandescent/Halogen, 250VA ELV, 200VA MLV, 2A Resistive

Description

Leviton's IPV02/IPS02 universal vacancy and occupancy Sensors combine state of the art technology with new aesthetics to provide optimal management of lighting and motor loads and a choice of either manual ON (Vacancy Sensor) or Automatic ON (Occupancy Sensor) switching. These energy saving sensors are engineered to control current LED, CFL, electronic and magnetic low voltage and incandescent loads and ensure that lights/motors will turn ON manually (vacancy) or automatically (occupancy) and turn OFF automatically when motion is no longer detected within the covered range. Designed to fit in a standard wallbox, both devices offer 180 degree field of View and 900 Square feet of coverage. All models have screw terminals for easy installation and do not require a neutral wire for connection. The devices feature a time delay setting which allows users the option to delay the lights/motor load from switching off for 30 seconds, 5 minutes, 15 minutes or 30 minutes. For example, closet lighting would ideally be set to turn OFF in 30 seconds while a bathroom fan may be set to turn OFF 15 minutes after the space is vacated. The IPV02/IPS02 is single pole, relay-based and designed to replace a single pole switch for loads such as exhaust fans. It is compatible with LED, CFL, incandescent, fluorescent and motor loads.


  • • Compatible with both electronic and magnetic ballasts or 1/6 HP loads
  • • Automatic-on/automatic off operation for seamless energy management
  • • Convenient push-button provides manual off light switching at any time
  • • Segmented lens provides optimum sensitivity and performance
  • • It is designed with an extensive minor motion area where even slight body movements will be detected
  • • LED indicator light flashes when sensor detects motion to verify detection is active
