  6. Lighting Controls M/T Sen 2P Lt Almond

This item is Discontinued.

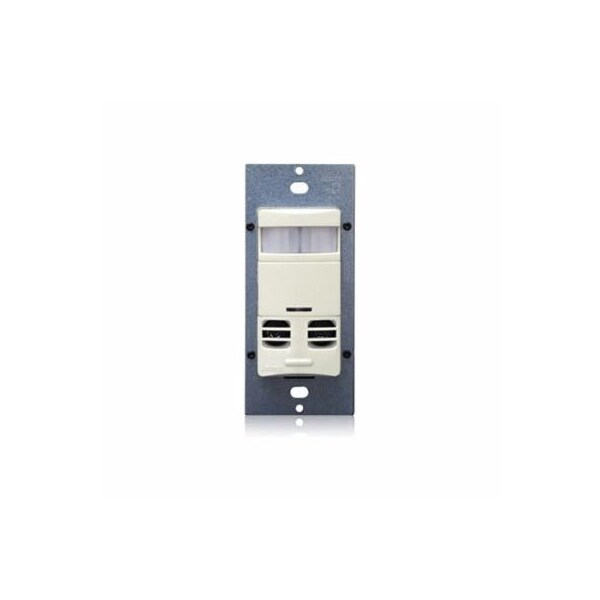

Leviton Lighting Controls M/T Sen 2P Lt Almond OSSMD-MAT

Lighting Controls M/T Sen 2P Lt Almond (Discontinued)

  • Mfr # OSSMD-MAT
  • Zoro # G4210002
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
OSSMD-MAT
Zoro #
G4210002
UPC #
78477509166
Country of Origin
United States

Dimensions

Size
Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.83" (47mm), Install Depth 1.35" (34.4mm), Install Height 2.06" (66.2mm)
Height
4.62 in
Width
1.88 in
Length
2.88 in

Details

Type
Occupancy Sensor;Single-Pole Switch;Dual Relay
Time Delay
30 sec to 30 min
Color
Light Almond
Switch Type
Single-Pole, Dual Relay
Neutral Wire Connection
Required
Storage Temperature Range
14° to 185°F (-10° to 85°C)
USMCA Compliant
Yes
Frequency
50/60Hz
Load Rating
Primary Relay: LED:10A @ 120V 10A @ 277V Fluorescent: 1200VA @ 120V 2700VA @ 277V Incandescent: 800W @ 120V - Secondary Relay: LED:10A @ 120V 10A @ 277V Fluorescent: 800VA @ 120V 1200VA @ 277V Incandescent: 800W @ 120V Motor: 1/4 HP
Listings
ETL/cETL listed, CSA, FCC and NOM. Can be used to comply with IECC, ASHRAE 90.1, and Title 24, Part 6 occupancy/vacancy sensing requirements
Wiring
Primary Relay: No. 16 AWG leads: Line: Black, Load: Blue Ground: Green, White: Neutral (where provided) - Secondary Relay: No. 16 AWG isolated contact leads: (2) Red
Power Consumption
120V 210mW, 277V 410mW
Relative Humidity
20% to 90% non-condensing
Relay Type
Dual Relay
Grade
Commercial
Application
Private and Executive Offices, Conference Rooms, Classrooms, Restrooms, Storage Areas, Training Areas, Multimedia Rooms, Day Care Centers, Lounges, Retrofits, Bi-Level or A/B switching, Multi-location Switching
Pattern
180°
Environmental Conditions
Operating Temperature (0 to +40 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing)
Standard
NAFTA (CF434);ETL\C-ETL Listed;CSA Certified;CEC Title 24 Compliant;FCC Compliant;NOM
Item
Occupancy Sensor
Sensor Operation
Occupancy
Minimum Operating Temperature
32 Degrees F
Sensing Technology
Passive Infrared, Ultrasonic
Installation Location
Wall Mount
Operating Voltage
120/230/277V AC
Maximum Operating Temperature
104 Degrees F
Maximum Coverage Area
2,400 sq ft

Description

Leviton Dual Relay Multi- Tech Wall Box Occupancy Sensor, with a Neutral Wire, Light Almond
