  6. Lighting Controls M/T Snsr W/Ntrl 347V Wh

This item is Discontinued.

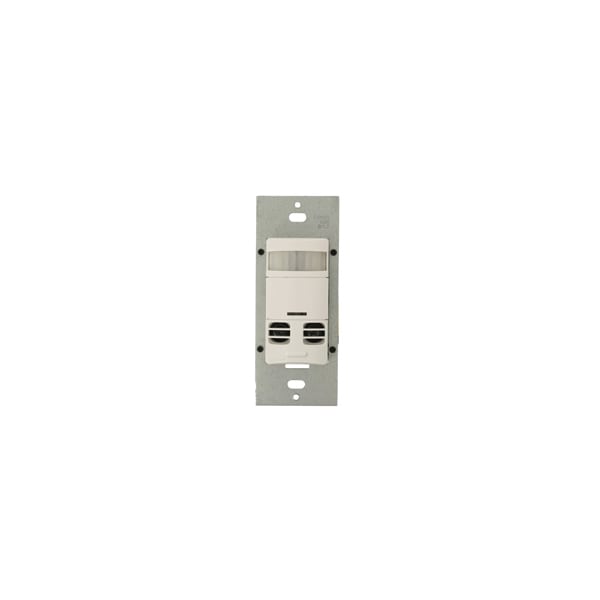

Leviton Lighting Controls M/T Snsr W/Ntrl 347V Wh OSSMT-M3W

Lighting Controls M/T Snsr W/Ntrl 347V Wh (Discontinued)

  • Mfr # OSSMT-M3W
  • Zoro # G4208706
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OSSMT-M3W
Zoro #
G4208706
UPC #
78477554036
Country of Origin
Mexico

Dimensions

Height
4.62 in
Width
1.88 in
Size
Height 4.06" (103.12mm), Width 1.75" (44.45mm), Depth 1.85" (46.99mm), Install Depth 1.35" (34.37mm), Install Height 2.65" (67.26mm)
Length
2.88 in
Dimensions
46 in H x 1.75 in W x 1.85 in D

Details

Time Delay
30 sec to 30 min
Type
Occupancy Sensor;Single-Pole Switch
Color
White
Viewing Angle
180 °
Neutral Wire Connection
Required
Switch Type
Single-Pole
Application
Retrofit, Private and Executive Offices, Conference Rooms, Storage Areas, Restrooms, Classrooms, Lounges, Training Areas, Multi-Location Switching
Pattern
180°
Relative Humidity
20% to 90% non-condensing
Power Consumption
U/S and PIR: 500mW - PIR only: 350mW
Listings
cETL listed, CSA, can be used to comply with Title 24, Part 6 occupancy sensing requirements, FCC compliant, tested to NEMA WD 7-2011
Frequency
50/60Hz
USMCA Compliant
Yes
Grade
Commercial
Wiring
Line-Black, Neutral-White, Load-Blue, Ground-Green
Storage Temperature Range
14° to 185°F (-10° to 85°C)
Lamp Type
LED
Response Frequency
50/60 Hz
Power Rating
190/270/350/390 mW
Environmental Conditions
Operating Temperature (0 to +40 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing)
Supply Voltage
120/230/277/347 VAC
Standard
cETL Listed;CEC Title 24 Compliant;FCC Compliant;NAFTA (CF434)
Temperature Rating
0 to 40 °C
Item
Occupancy Sensor
Operating Voltage
347V AC
Minimum Operating Temperature
0 Degrees C
Installation Location
Wall Mount
Sensing Technology
Passive Infrared, Ultrasonic
Maximum Operating Temperature
40 Degrees C
Sensor Operation
Occupancy
Maximum Coverage Area
2,400 sq ft

Description

Neutral, 347V, CEC Title 24 Compliant, Ambient Light Override, Self Adjusting, Multi-Tech Wall Occupancy Sensor, White
