  11. Locking Connector, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

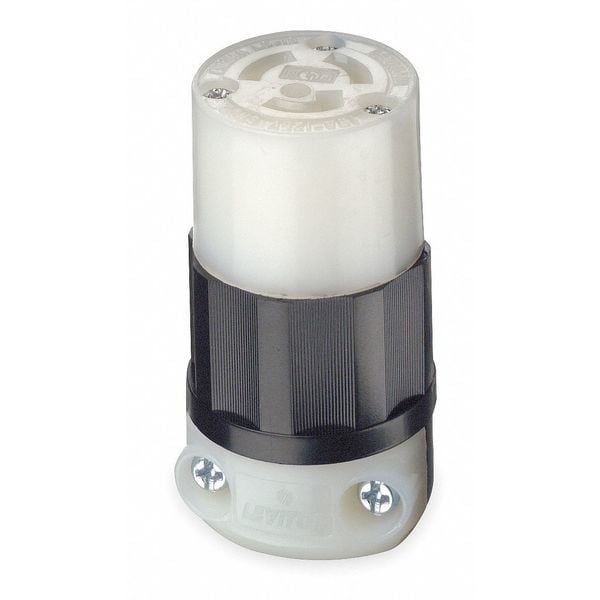

Leviton Locking Connector, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White 4729-C - main

Locking Connector, L5-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # 4729-C

  • Zoro # G504836850

product price: $19.89
/ea

Key Features

NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4729-C
Zoro #
G504836850
UPC #
07847779552
Country of Origin
Mexico

Dimensions

Overall Length
2.76 in
Face Diameter
1.39 in
Maximum Wire Size
10 AWG
Outside Diameter
1.53 in
For Minimum Cable Diameter
0.24 in
Minimum Wire Size
18 AWG
For Maximum Cable Diameter
0.70 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L5-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13393, UL 94, UL Federal Specification WC-596 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
IP Rating
Not Rated
Body Material
Impact Modified Nylon
Material
Impact Modified Nylon
Grade
Federal Specification
UL 94 Flammability Rating
HB
Midget Locking
No
Horsepower Rating
1/2 hp
For Environment
Dry
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
Not Rated
Market
Industrial
Housing Material
Nylon
Contact Material
Brass
Insulation Material
Nylon
Polarized
Yes
Maximum Operating Temperature
140 Degrees F
Flame Resistant
Rated HB or better UL94
Dielectric Strength
Withstands 2000V per UL498
NEMA Rating
L5-15R

Description

Locking Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, White, Housing Material Nylon, IP Rating Not Rated, NEMA Receptacle Configuration L5-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, Shrouded No, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Brass
