  11. Locking Connector, L5-20R, 20 A, 125V, Single Phase, 2 Pole, Screw Terminals, Black

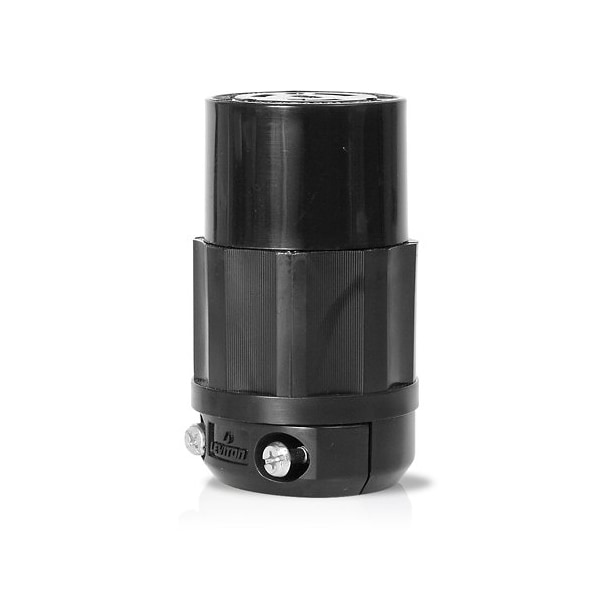

Leviton Locking Connector, L5-20R, 20 A, 125V, Single Phase, 2 Pole, Screw Terminals, Black 2313-B - main

Locking Connector, L5-20R, 20 A, 125V, Single Phase, 2 Pole, Screw Terminals, Black

  • Mfr # 2313-B

  • Zoro # G616091369

product price: $16.19
/ea

Key Features

NEMA Receptacle Configuration
L5-20R
Current Rating
20 A
Voltage Rating
125V
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2313-B
Zoro #
G616091369
UPC #
078477827888
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.385 in
Minimum Wire Size
16 AWG
Maximum Wire Size
10 AWG
Overall Length
2.08 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L5-20R
Current Rating
20 A
Voltage Rating
125V
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
Yes
Grounding
Grounded
Housing Color
Black
IP Rating
Not Rated
Standards
ANSI C-73, CSA C22. 2 NO. 42 File LR-406, NOM 57, RoHS, UL FED SPEC WC-596 File E13393, UL498 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Grade
Industrial
UL 94 Flammability Rating
HB
Polarized
Yes
Housing Material
Nylon
Market
Industrial
Horsepower Rating
1 hp
Maximum Operating Temperature
60 Degrees C
For Environment
Dry
Minimum Operating Temperature
-40 Degrees C
Contact Material
Brass

Description

Locking Connector,Industrial Grade,Black
