  11. Locking Connector, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

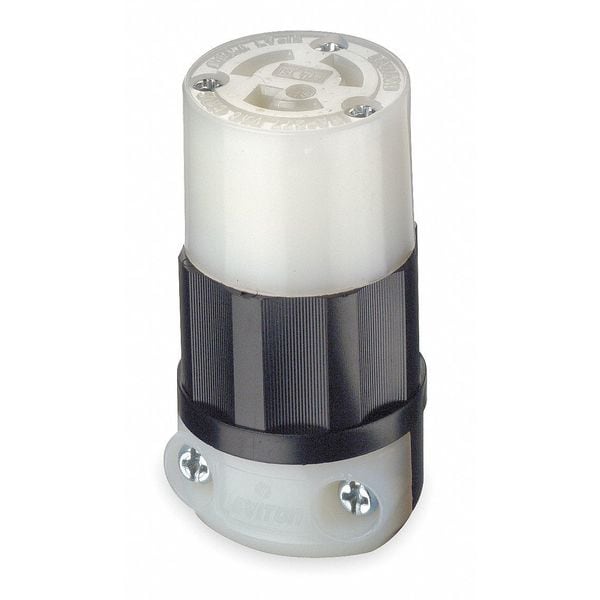

Leviton Locking Connector, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black, White 4779-C - main

Locking Connector, L7-15R, 15 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # 4779-C

  • Zoro # G804836833

product price: $17.79
/ea

Key Features

NEMA Receptacle Configuration
L7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4779-C
Zoro #
G804836833
UPC #
07847779580
Country of Origin
United States

Dimensions

Minimum Wire Size
18 AWG
Overall Length
2.76 in
For Minimum Cable Diameter
0.23 in
Maximum Wire Size
10 AWG
Outside Diameter
1.53 in
For Maximum Cable Diameter
0.6875 in
Face Diameter
1.39 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L7-15R
Current Rating
15 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13393, UL 94, UL Federal Specification WC-596 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Grade
Federal Specification
Body Material
Impact Modified Nylon
Material
Nylon
IP Rating
Not Rated
Horsepower Rating
2 hp
Insulation Material
Nylon
UL 94 Flammability Rating
HB
Midget Locking
No
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
For Environment
Dry
Polarized
Yes
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
Not Rated
Market
Industrial
Contact Material
Brass
Dielectric Strength
Withstands 2000V per UL498
Flame Resistant
Rated HB or better UL94
NEMA Rating
L7-15R

Description

Locking Connector, Connection Orientation Straight, Current Rating 15 A, Housing Color Black, White, Housing Material Nylon, IP Rating Not Rated, NEMA Receptacle Configuration L7-15R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, Shrouded No, Voltage Rating 277V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Brass
