  11. Locking Connector, L8-30R, 30 A, 480V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

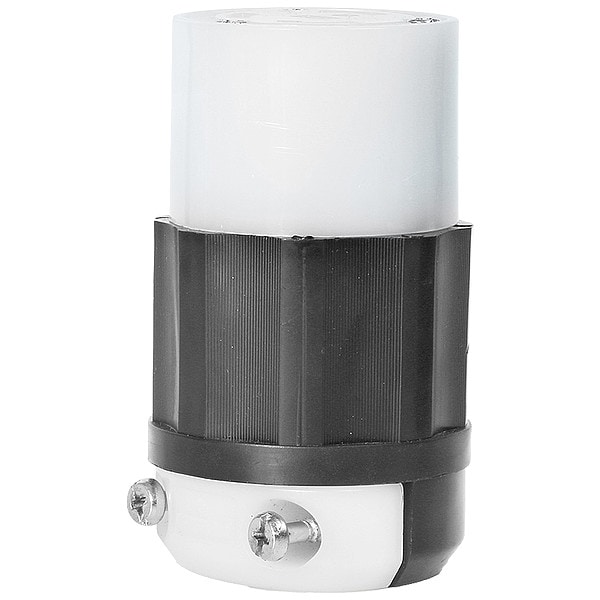

Leviton Locking Connector, L8-30R, 30 A, 480V AC, Single Phase, 2 Pole, Screw Terminals, Black, White 2643 - main

Locking Connector, L8-30R, 30 A, 480V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # 2643

  • Zoro # G704255956

product price: $61.79
/ea

Key Features

NEMA Receptacle Configuration
L8-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2643
Zoro #
G704255956
UPC #
07847780780
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
0.9375 in
For Minimum Cable Diameter
0.385 in
Minimum Wire Size
16 AWG
Maximum Wire Size
8 AWG
Overall Length
3.56 in
Outside Diameter
2.08 in
Face Diameter
1.84 in

Details

Item
Locking Connector
NEMA Receptacle Configuration
L8-30R
Current Rating
30 A
Voltage Rating
480V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, RoHS Compliant, UL 498 File E13393, UL 94, UL Federal Specification WC-596 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Material
Impact Modified Nylon
Body Material
Impact Modified Nylon
Grade
Federal Specification
UL 94 Flammability Rating
HB
Minimum Operating Temperature
-40 Degrees F
Market
Industrial
For Environment
Dry
Housing Material
Nylon
Polarized
Yes
NEMA Enclosure Rating
Not Rated
Contact Material
Brass
Horsepower Rating
5 hp
Maximum Operating Temperature
140 Degrees F
Midget Locking
No
Insulation Material
Nylon
Flame Resistant
Rated HB or better UL94
Dielectric Strength
Withstands 2000V per UL498
NEMA Rating
L8-30R

Description

Locking Connector, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, IP Rating Not Rated, NEMA Receptacle Configuration L8-30R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, Shrouded No, Voltage Rating 480V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Brass
