  11. Locking Plug, L14-20P, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White

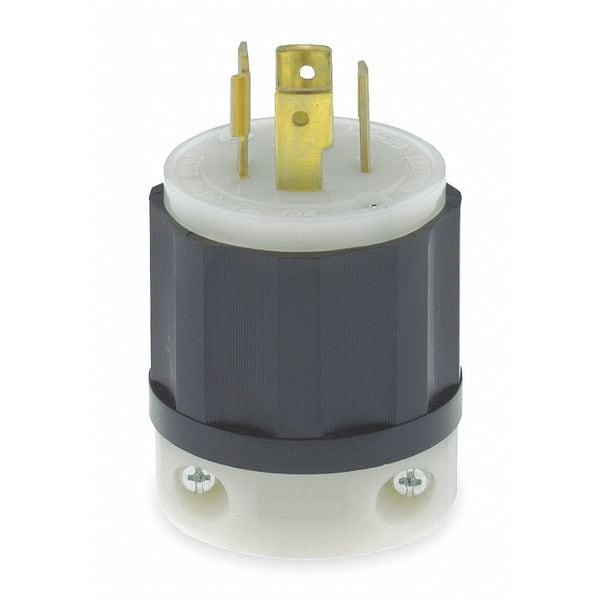

Leviton Locking Plug, L14-20P, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White 2411 - main

Locking Plug, L14-20P, 20 A, 125/250V AC, Single Phase, 3 Pole, Screw Terminals, Black, White

  • Mfr # 2411

  • Zoro # G604393369

product price: $17.79
/ea

Key Features

NEMA Plug Configuration
L14-20P
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2411
Zoro #
G604393369
UPC #
07847880811
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
0.775 in
For Minimum Cable Diameter
0.56 in
Cord Size
0.595 in to 0.895 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Body Length
2.7 in
Face Diameter
1.97 in
Outside Diameter
2.23 in
Length
3.59 in

Details

Item
Locking Plug
NEMA Plug Configuration
L14-20P
Current Rating
20 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Number of Blades
4
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
IP Rating
Not Rated
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498 File E13393, UL Federal Specification WC-596 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Material
Impact Modified Nylon
Special Features
Chemical Resistant, Long Lasting Reliability, Resists Impact, Rough Use, Sunlight, Unique Cord Clamp
Body Material
Impact Modified Nylon
Grade
Industrial
For Environment
Dry
Market
Industrial
Maximum Operating Temperature
140 Degrees F
Polarized
Yes
Minimum Operating Temperature
-40 Degrees C
Housing Material
Nylon
Blade Material
Brass
Horsepower Rating
2 hp
Midget Locking
No
Flammability
Rated HB or better UL94

Description

Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L14-20P, Number of Blades 4, Number of Poles 3, Phase Single, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.97 in, For Maximum Cable Diameter 0.775 in, For Minimum Cable Diameter 0.56 in
