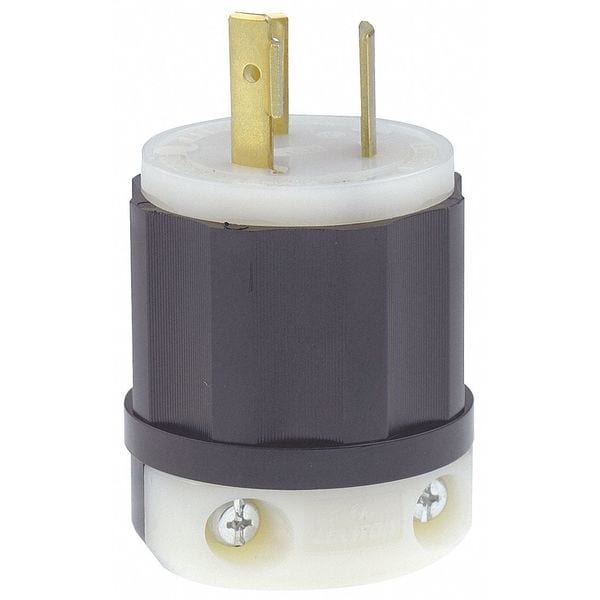

Locking Plug, L7-20P, 20 A, 277V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # 2331

  • Zoro # G904836559

product price:
$
14.69
/ea

Key Features

NEMA Plug Configuration
L7-20P
Current Rating
20 A
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2331
Zoro #
G904836559
UPC #
07847780212
Country of Origin
Mexico
Item
Locking Plug
NEMA Plug Configuration
L7-20P
Current Rating
20 A
Voltage Rating
277V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498 File E13393, UL Federal Specification WC-596 File E13393
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Material
Impact Modified Nylon
Special Features
Chemical Resistant, Resists Impact, Rough Use, Sunlight
Body Material
Impact Modified Nylon
Grade
Federal Specification
IP Rating
Not Rated
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-40 Degrees C
Market
Industrial
Horsepower Rating
2 hp
Housing Material
Nylon
Polarized
Yes
Blade Material
Brass
Midget Locking
No
Flammability
Rated HB or better UL94
Power and Ground Indicating Light
No
Features
Industry Exclusive Limited Lifetime Warranty
UL 94 Flammability Rating
HB

Description

Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L7-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Impact Resistant, Voltage Rating 277V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.84 in, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.385 in, Grade Federal Specification, Grounding Grounded
