Shop LEVITON

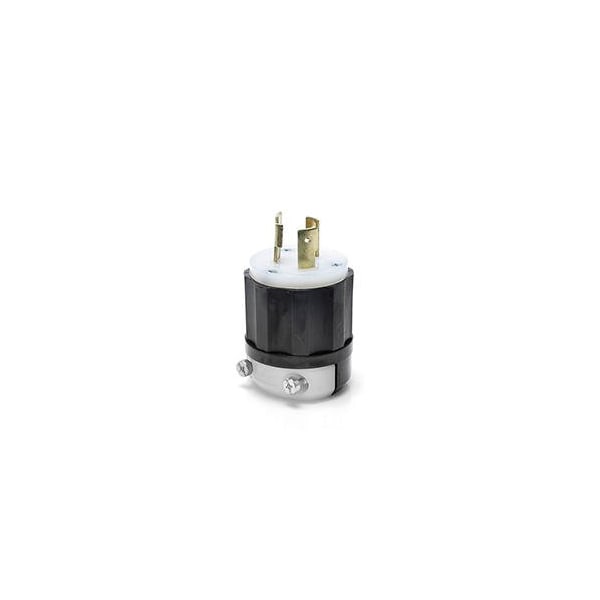

Locking Plug, L6-20P, 20 A, 250V AC, Single Phase, 2 Pole, Screw Terminals, Black, White

  • Mfr # 2321

  • Zoro # G816525336

product price:
$
19.29
/ea

Key Features

NEMA Plug Configuration
L6-20P
Current Rating
20 A
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2321
Zoro #
G816525336
UPC #
07847780112
Country of Origin
Mexico
Item
Locking Plug
NEMA Plug Configuration
L6-20P
Current Rating
20 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Number of Blades
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Straight
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Standards
ANSI C73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057 Certified, UL 498 File E13393, UL Federal Specification WC-596 File E13393
Resistance Properties
Impact Resistant
Horsepower Rating
2 hp
Blade Material
Brass
Polarized
Yes
Special Features
Chemical Resistant, Resists Impact, Rough Use, Sunlight
Housing Material
Nylon
Midget Locking
No
Minimum Operating Temperature
-40 Degrees C
IP Rating
Not Rated
Material
Impact Modified Nylon
Grade
Federal Specification
Market
Industrial
Maximum Operating Temperature
140 Degrees F
Features
Industry Exclusive Limited Lifetime Warranty
UL 94 Flammability Rating
HB
Power and Ground Indicating Light
No

Description

Locking Plug, Connection Orientation Straight, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L6-20P, Number of Blades 3, Number of Poles 2, Phase Single, Polarized Yes, Resistance Properties Impact Resistant, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Face Diameter 1.84 in, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.385 in, Grade Federal Specification, Grounding Grounded
