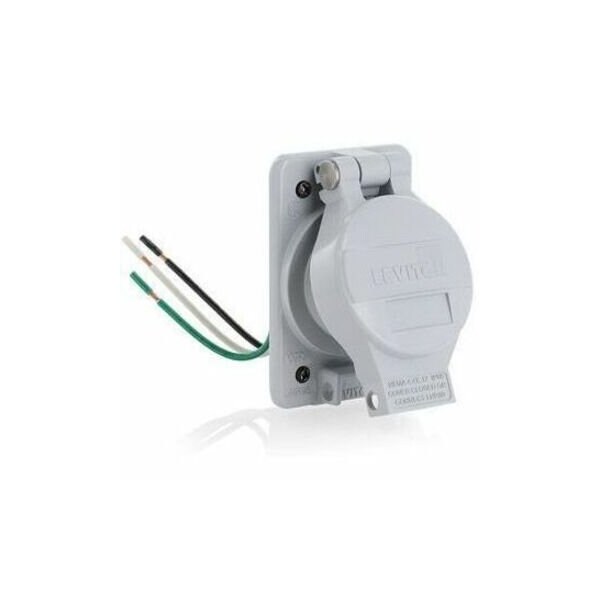

Leviton Locking Receptacle, 15 A, 125V AC, Gray LNR96-5 - main

Locking Receptacle, 15 A, 125V AC, Gray

  • Mfr # LNR96-5

  • Zoro # G422728619

product price:  $159.99
/ea
Free Shipping & Returns

Key Features

Horsepower Rating
1/2 hp
NEMA Enclosure Rating
Not Rated
Maximum Operating Temperature
60 Degrees C
Maximum Wire Size
10 AWG
Current Rating
15 A
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
LNR96-5
Zoro #
G422728619
UPC #
-
Country of Origin
Mexico

Dimensions

Maximum Wire Size
10 AWG
Face Diameter
1.43 in
Face Plate Height
4.46 in
Minimum Wire Size
18 AWG
Face Plate Width
2.95 in
Mount Hole Center-to-Center Height
3.75 in

Details

Horsepower Rating
1/2 hp
NEMA Enclosure Rating
Not Rated
Maximum Operating Temperature
60 Degrees C
Current Rating
15 A
Connection Orientation
Straight
Phase
Single
Voltage Rating
125V AC
Housing Material
Aluminum
Minimum Operating Temperature
-40 Degrees C
Item
Locking Receptacle
Housing Color
Gray
NEMA Receptacle Configuration
L5-15R
Wire Connection Type
Screw Terminals
Number of Wires
3
Grounding
Grounded
For Environment
Wet
Features
Cover Cannot Be Lost or Left Off, Industry-Exclusive Self-Closing Cover Automatically Seals Receptacle When Not in Use, Mounts to Common FS/FD Cast Device Boxes, The Only Submersible Receptacle in Its Class, Wire Pigtails Make Installation Faster and Easier
IP Rating
Not Rated
Number of Poles
2
Contact Material
Nickel-Plated Brass
Shrouded
Yes
Resistance Properties
Weather Resistant
Number of Gangs
1
Hub Type
Dead End
Cover Type
No Cover
Flange Type
Non-Flanged
Number of Outlets
1
Series
Insulgrip
Market
Industrial
Standards
ANSI C-73, CSA C22.2 No. 42, NEMA WD-6, NOM-ANCE, UL 498
Midget Locking
No

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 15 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Gray, Housing Material Aluminum, Mount Type Not Applicable, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration L5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, Contact Material Nickel-Plated Brass, Cover Type No Cover
