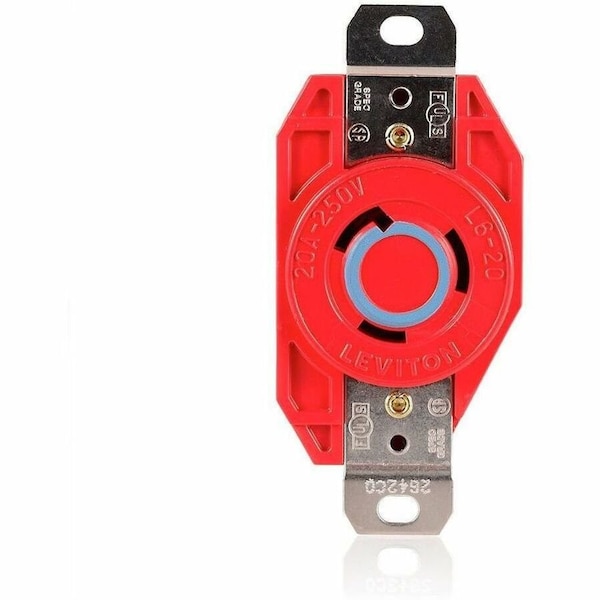

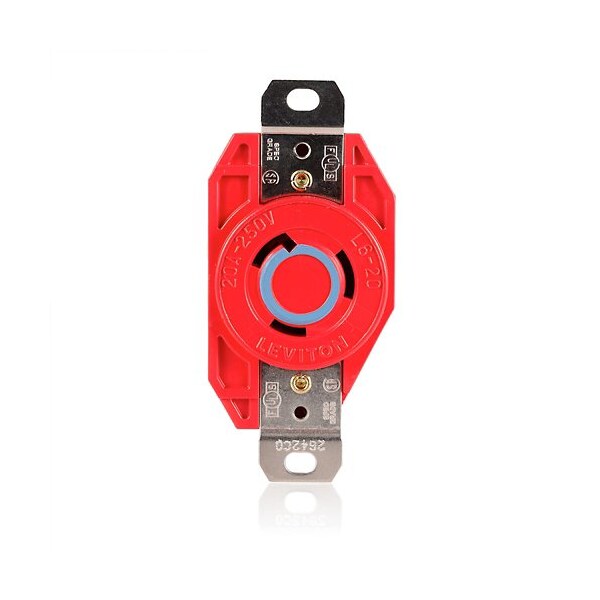

Leviton Locking Receptacle, 20 A, 250V AC, Red 2320-R - main

Locking Receptacle, 20 A, 250V AC, Red

  • Mfr # 2320-R

  • Zoro # G922586597

product price:  $29.25
/ea

Key Features

Midget Locking
No
Phase
Single
Market
Industrial
Contact Material
Brass
Overall Depth
1.31 in
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2320-R
Zoro #
G922586597
UPC #
78477333174
Country of Origin
Mexico

Dimensions

Overall Depth
1.31 in
Face Plate Height
2.67 in
Maximum Wire Size
8 AWG
Face Diameter
1.56 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.75 in
Face Plate Width
1.69 in

Details

Midget Locking
No
Phase
Single
Market
Industrial
Contact Material
Brass
Item
Locking Receptacle
Number of Poles
2
Voltage Rating
250V AC
Number of Outlets
2
Hub Type
Dead End
NEMA Enclosure Rating
Not Rated
Flange Type
Non-Flanged
Number of Gangs
1
Mount Type
Flush
Shrouded
Yes
Standards
ANSI C-73, CSA C22.2 No. 42, NEMA WD-1 and WD-6, NOM 057, UL 498, UL Fed Spec W-C-596
Maximum Operating Temperature
60 Degrees C
Housing Material
Valox
Current Rating
20 A
UL 94 Flammability Rating
V-0
Cover Type
No Cover
Horsepower Rating
1 hp
Number of Wires
3
Connection Orientation
Straight
Wire Connection Type
Screw Terminals
IP Rating
Not Rated
Minimum Operating Temperature
-40 Degrees C
Grounding
Grounded
Resistance Properties
Impact Resistant
Features
Single-Piece Contacts for Superior Conductivity, Triple Head Brass
Series
Hubbell-PRO
Housing Color
Red
NEMA Receptacle Configuration
L6-20R
For Environment
Industrial

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 20 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Red, Housing Material Valox, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration L6-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, Cover Type No Cover, Face Diameter 1.56 in
