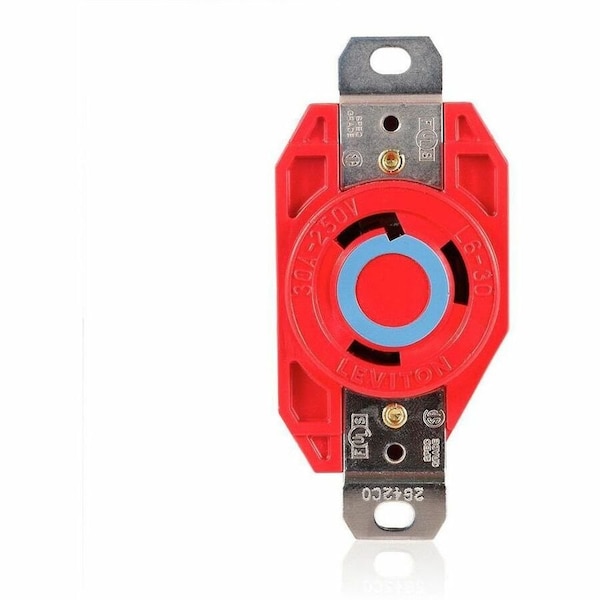

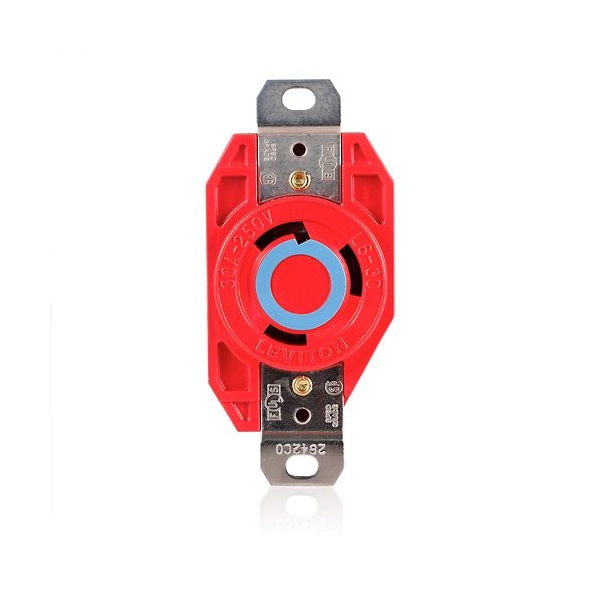

Leviton Locking Receptacle, 30 A, 250V AC, Red 2620-R - main

Locking Receptacle, 30 A, 250V AC, Red

  • Mfr # 2620-R

  • Zoro # G622586354

product price:  $69.49
/ea

Key Features

UL 94 Flammability Rating
V-0
Series
Hubbell-PRO
Maximum Operating Temperature
60 Degrees C
Minimum Wire Size
14 AWG
Shrouded
Yes
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2620-R
Zoro #
G622586354
UPC #
78477333181
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Face Diameter
1.56 in
Overall Depth
1.31 in
Face Plate Height
2.67 in
Maximum Wire Size
8 AWG
Mount Hole Center-to-Center Height
3.75 in
Face Plate Width
1.69 in

Details

UL 94 Flammability Rating
V-0
Series
Hubbell-PRO
Maximum Operating Temperature
60 Degrees C
Shrouded
Yes
Resistance Properties
Impact Resistant
IP Rating
Not Rated
Phase
Single
Flange Type
Non-Flanged
NEMA Receptacle Configuration
L6-30R
Number of Outlets
2
Grounding
Grounded
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees C
Mount Type
Flush
Housing Material
Valox
Cover Type
No Cover
Features
Single-Piece Contacts for Superior Conductivity, Triple Head Brass
Market
Industrial
Hub Type
Dead End
Horsepower Rating
1 hp
Current Rating
30 A
Item
Locking Receptacle
Standards
ANSI C-73, CSA C22.2 No. 42, NEMA WD-1 and WD-6, NOM 057, UL 498, UL Fed Spec W-C-596
Number of Gangs
1
For Environment
Industrial
Voltage Rating
250V AC
Wire Connection Type
Screw Terminals
Number of Poles
2
Number of Wires
3
Connection Orientation
Straight
Midget Locking
No
Housing Color
Red
NEMA Enclosure Rating
Not Rated

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 30 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Red, Housing Material Valox, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration L6-30R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, Cover Type No Cover, Face Diameter 1.56 in
