Shop LEVITON

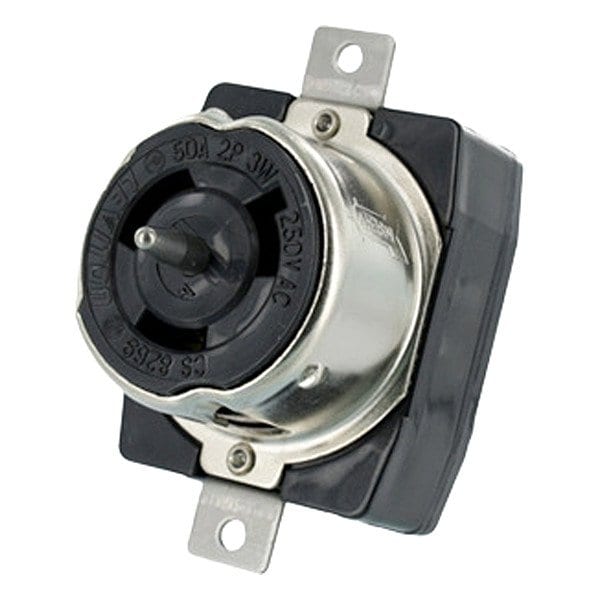

Locking Receptacle, 50 A, 250V AC, Black

  • Mfr # CS8269

  • Zoro # G622586293

product price:  $196.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
2
Series
Valise
Cover Type
No Cover
Overall Depth
3.18 in
Contact Material
Brass
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CS8269
Zoro #
G622586293
UPC #
78477326084
Country of Origin
Mexico

Dimensions

Overall Depth
3.18 in
Face Plate Height
2.69 in
Mount Hole Center-to-Center Height
3.75 in
Minimum Wire Size
10 AWG
Face Plate Width
2.13 in
Maximum Wire Size
6 AWG

Details

Number of Poles
2
Series
Valise
Cover Type
No Cover
Contact Material
Brass
Item
Locking Receptacle
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
Not Rated
Market
Industrial
Midget Locking
No
Shrouded
Yes
Wire Connection Type
Screw Terminals
Mount Type
Flush
Phase
Single
Connection Orientation
Straight
For Environment
Industrial
IP Rating
Not Rated
Maximum Operating Temperature
167 Degrees F
Housing Material
Nylon
Hub Type
Dead End
Grounding
Grounded
Number of Gangs
1
Housing Color
Black
Flange Type
Non-Flanged
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
NEMA Receptacle Configuration
Non-NEMA
Resistance Properties
Corrosion Resistant
Number of Wires
3
Features
Extended Life Reduces Equipment Downtime, Premium Materials for Rugged Construction, Reduced Downtime Reduces Labor Costs and Increases Profits, Rugged Construction Extends Device Life
Current Rating
50 A
Horsepower Rating
75 hp
Voltage Rating
250V AC
UL 94 Flammability Rating
V-0
Number of Outlets
1

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 50 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration Non-NEMA, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, Contact Material Brass, Cover Type No Cover
