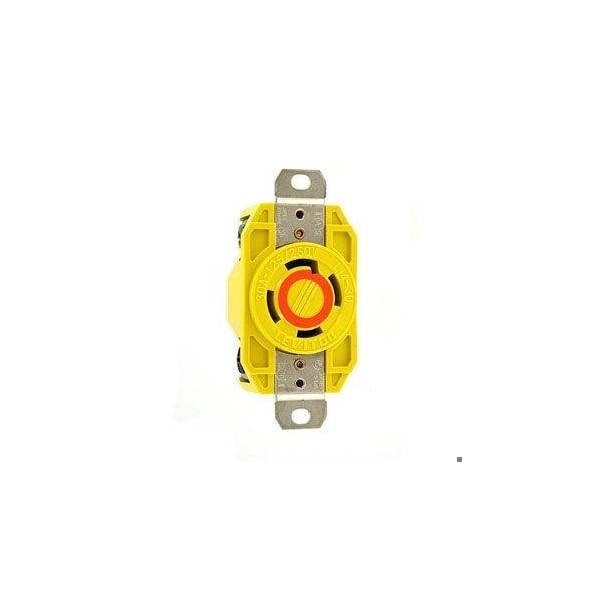

Flanged Locking Receptacle, L14-30R, 30 A, 125/250V AC, Single Phase, 3 Pole, Flush Mount, Yellow

  • Mfr # 27CM-10

  • Zoro # G216090175

product price:
$
82.99
/ea

Key Features

NEMA Receptacle Configuration
L14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
27CM-10
Zoro #
G216090175
UPC #
-
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.75 in
Face Diameter
1.56 in
Maximum Wire Size
8 AWG
Face Plate Width
1.69 in
Face Plate Height
2.67 in
Overall Depth
1.43 in

Details

Item
Flanged Locking Receptacle
NEMA Receptacle Configuration
L14-30R
Current Rating
30 A
Voltage Rating
125/250V AC
Phase
Single
Number of Poles
3
Number of Wires
4
Wire Connection Type
Screw Terminals
Grounding
Grounded
Housing Color
Yellow
Mount Type
Flush
Flange Type
Non-Flanged
Standards
ANSI C-73, CSA: C22.2 No. 42, NEMA WD-1 and WD-6, NOM 57, UL 498, UL FED SPEC W-C-596
Resistance Properties
Corrosion Resistant
Wiring Style
Standard
Shrouded
Yes
NEMA Enclosure Rating
Not Rated
Contact Material
Nickel-Plated Brass
Number of Gangs
1
Housing Material
Valox
For Environment
Corrosive
Minimum Operating Temperature
-40 Degrees C
Polarized
Yes
Maximum Operating Temperature
60 Degrees C
Market
Industrial
Connection Orientation
Straight
Horsepower Rating
1 hp
Hub Type
Dead End
IP Rating
Not Rated
Midget Locking
No
Series
Insulgrip
Number of Outlets
1
UL 94 Flammability Rating
V-0
Cover Type
No Cover

Description

Flush Mtg Locking Receptacle,Yellow
