  11. Locking Receptacle, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

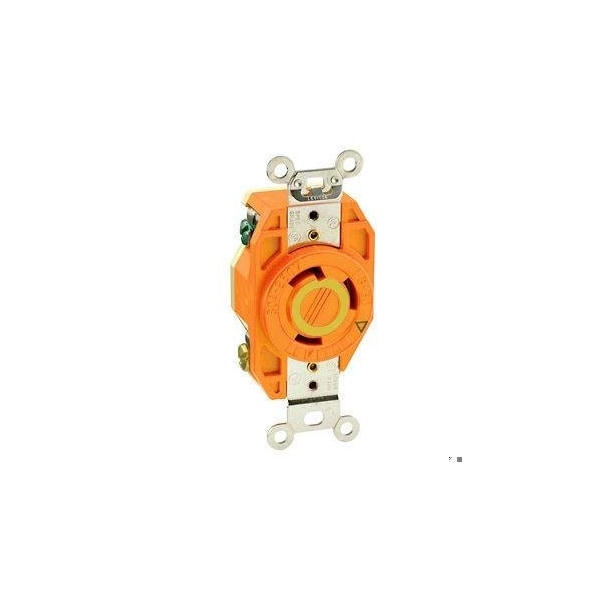

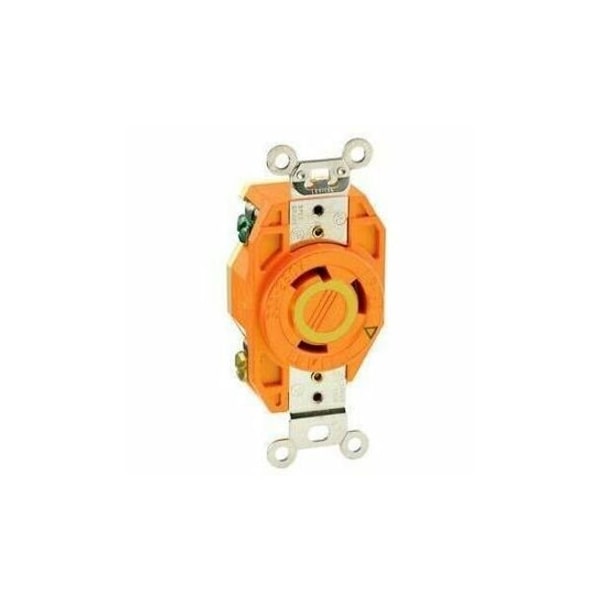

Leviton Locking Receptacle, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals 2610-IG - main

Locking Receptacle, L5-30R, 30 A, 125V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # 2610-IG

  • Zoro # G615864766

product price: $41.19
/ea

Key Features

NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2610-IG
Zoro #
G615864766
UPC #
078477809488
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
8 AWG
Face Plate Width
1.687 in
Mount Hole Center-to-Center Height
3.28 in
Face Plate Height
2.671 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L5-30R
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Isolated Ground
Housing Color
Orange
Mount Type
Flush
Cover Type
No Cover
Standards
ANSI, CSA C22.2 No. 42, NEMA, NOM, UL Fed Spec WC-596, UL498
Resistance Properties
Corrosion Resistant
Flange Type
Non-Flanged
Housing Material
Valox 357
Market
Industrial
Wiring Style
Standard
Horsepower Rating
2 hp
Connection Orientation
Straight
For Environment
Corrosive
Maximum Operating Temperature
140 Degrees F
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
AFCI
No
Number of Gangs
1
Includes Mounting Hardware
Yes
Midget Locking
No
Number of Outlets
1

Description

Thrity Amp
