  11. Locking Receptacle, L6-15R, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

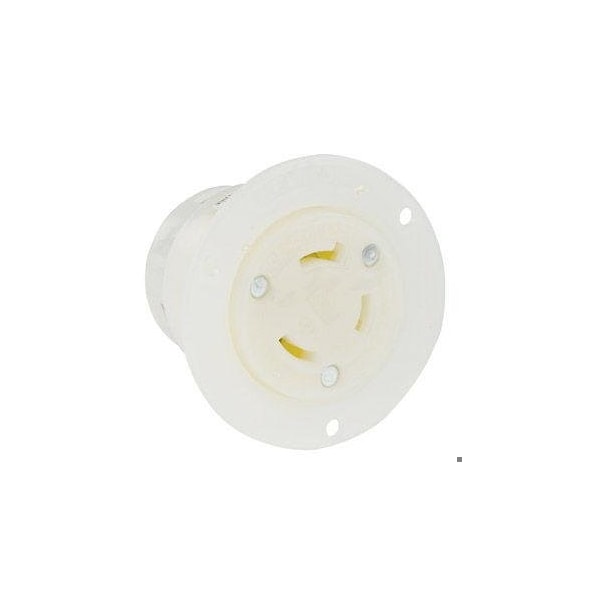

Leviton Locking Receptacle, L6-15R, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals 4585-C - main

Locking Receptacle, L6-15R, 15 A, 250V AC, Single Phase, 2 Pole, Flush Mount, Screw Terminals

  • Mfr # 4585-C

  • Zoro # G315864769

product price: $31.59
/ea

Key Features

NEMA Receptacle Configuration
L6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
4585-C
Zoro #
G315864769
UPC #
078477795743
Country of Origin
Mexico

Dimensions

Minimum Wire Size
18 AWG
Flange Diameter
2.5 in
Maximum Wire Size
10 AWG
Face Diameter
2.5 in

Details

Item
Locking Receptacle
NEMA Receptacle Configuration
L6-15R
Current Rating
15 A
Voltage Rating
250V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Shrouded
Yes
Grounding
Grounded
Housing Color
White
Mount Type
Flush
Cover Type
No Cover
Standards
ANSI, CSA C22 2 No 42, UL 498, UL Fed Spec WC 596
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Flange Type
Flanged
Market
Industrial
Contact Material
Brass
Horsepower Rating
1 1/2 hp
Wiring Style
Standard
Flange Shape
Round
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
For Environment
Dry
Housing Material
Nylon
Grade
Federal Specification
Maximum Operating Temperature
140 Degrees F
Includes Mounting Hardware
Yes
Midget Locking
No
AFCI
No
Number of Outlets
1

Description

Fifteen Amp
