Shop LEVITON

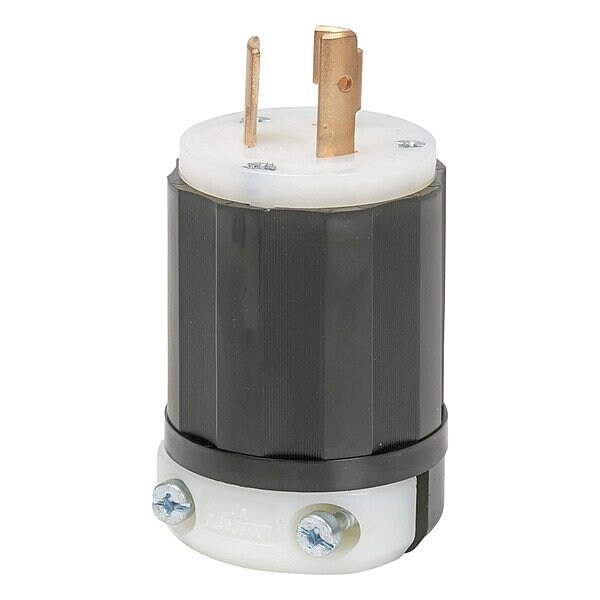

LockingPlug, 20A, 1hp, Black;White, Nylon

  • Mfr # 2311E

  • Zoro # G322729433

product price:
$
24.45
/ea

Key Features

Current Rating
20 A
Phase
Single
Housing Color
Black, White
Number of Blades
3
Resistance Properties
Impact Resistant
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2311E
Zoro #
G322729433
UPC #
-
Country of Origin
Mexico

Dimensions

Wire Rope Length
3.04 in
For Maximum Cable Diameter
0.72 in
For Minimum Cable Diameter
0.36 in
Overall Length
3.04 in
Length
3.04 in

Details

Current Rating
20 A
Phase
Single
Housing Color
Black, White
Number of Blades
3
Resistance Properties
Impact Resistant
Item
Locking Plug
Shrouded
No
IP Rating
Not Rated
Power and Ground Indicating Light
No
Grade
General Use
Series
Lever Edge(TM)
Grounding
Grounded
Wire Connection Type
Spring Clamp Terminals
Horsepower Rating
1 hp
Blade Material
Phosphor Bronze
Voltage Rating
125V AC
NEMA Plug Configuration
L5-20P
Features
Reliable Connection: Levers Reduce Risk of Loose Wire Termination, Secure: Lever Mechanism Provides a Strong, Secure Wire Connection, Time-Savings: Quick Wiring and Unwiring, User Safety: No Tool Required for Wire-Termination
Housing Material
Nylon
Minimum Operating Temperature
-40 Degrees C
Midget Locking
No
Maximum Operating Temperature
60 Degrees C
Standards
ANSI C-73, C22.2 No. 42, CSA File No. E13393, UL 498, W-C-596, WD-6
Number of Poles
2

Description

Locking Plug, Current Rating 20 A, Housing Color Black, White, Housing Material Nylon, NEMA Plug Configuration L5-20P, Number of Blades 3, Number of Poles 2, Phase Single, Resistance Properties Impact Resistant, Voltage Rating 125V AC, Wire Connection Type Spring Clamp Terminals, Wiring Style Standard, For Maximum Cable Diameter 0.72 in, For Minimum Cable Diameter 0.36 in, Grade General Use, Grounding Grounded, Horsepower Rating 1 hp, IP Rating Not Rated, Midget Locking No, Shrouded No
