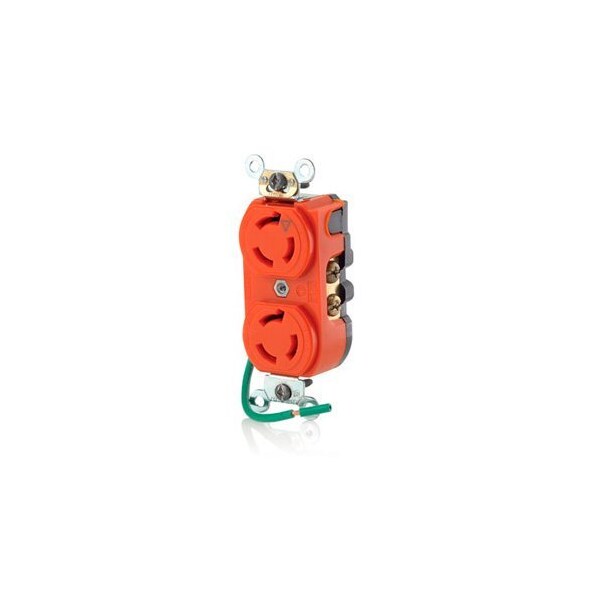

Leviton LockingReceptacle, 15A, 1-1/2hp, 250VAC, Org 4550-IG - main

LockingReceptacle, 15A, 1-1/2hp, 250VAC, Org

  • Mfr # 4550-IG

  • Zoro # G722586445

product price:  $53.99
/ea

Key Features

Hub Type
Dead End
Number of Wires
3
Housing Material
Nylon
For Environment
Industrial
Minimum Operating Temperature
-40 Degrees C
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
4550-IG
Zoro #
G722586445
UPC #
78477777985
Country of Origin
Mexico

Dimensions

Minimum Wire Size
18 AWG
Face Plate Height
2.77 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.75 in

Details

Hub Type
Dead End
Number of Wires
3
Housing Material
Nylon
For Environment
Industrial
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
60 Degrees C
Phase
Single
Housing Color
Orange
Contact Material
Brass
UL 94 Flammability Rating
V-2
Midget Locking
No
Grounding
Isolated Ground
IP Rating
Not Rated
Item
Locking Receptacle
NEMA Enclosure Rating
Not Rated
Standards
ANSI C-73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498, UL Fed Spec WC-596 File E13399
Voltage Rating
250V AC
Grade
Hospital Grade
Series
Insulgrip
Current Rating
15 A
Number of Poles
2
Number of Gangs
1
Shrouded
Yes
Mount Type
Flush
Cover Type
No Cover
Number of Outlets
1
Flange Type
Non-Flanged
Horsepower Rating
1 hp
Resistance Properties
Tamper Resistant
Connection Orientation
Straight
Wire Connection Type
Screw Terminals
Market
Industrial
NEMA Receptacle Configuration
L6-15R
Features
Heavy-Duty

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 15 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Orange, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration L6-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, Cover Type No Cover
