Shop LEVITON

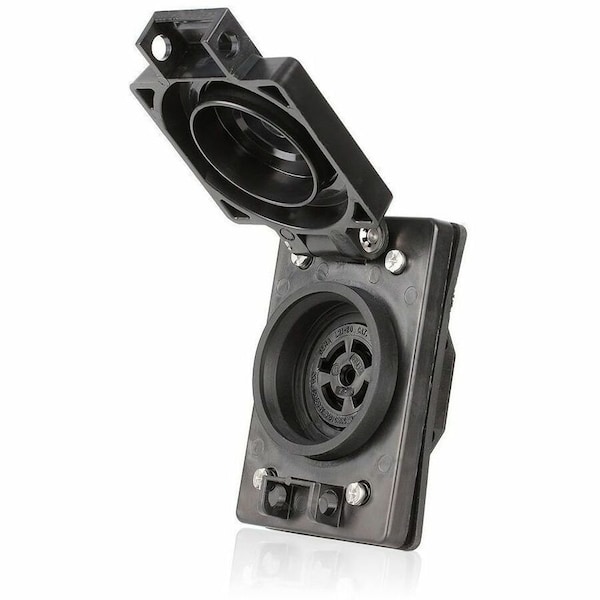

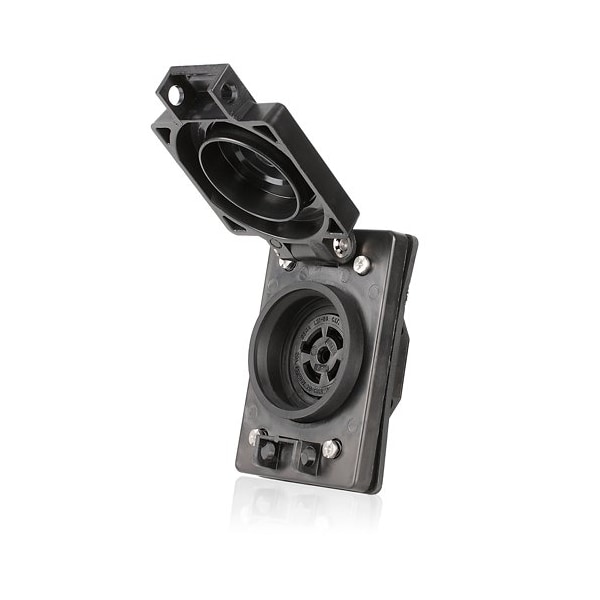

LockingReceptacle, 20A, 2hp, 120/208VAC, Blk

  • Mfr # 67W81-B
  • Zoro # G722587152
product price:
$
162.99
/ea
Free Shipping & Returns

Key Features

Midget Locking
No
Series
Insulgrip
Face Plate Height
4.63 in
Voltage Rating
120/208V AC
Includes
Cover
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
67W81-B
Zoro #
G722587152
UPC #
78477371541
Country of Origin
Mexico

Dimensions

Face Plate Height
4.63 in
Mount Hole Center-to-Center Height
3.75 in
Minimum Wire Size
14 AWG
Maximum Wire Size
8 AWG
Face Plate Width
3.13 in

Details

Midget Locking
No
Series
Insulgrip
Voltage Rating
120/208V AC
Includes
Cover
Number of Gangs
1
Number of Poles
4
Horsepower Rating
1 hp
NEMA Enclosure Rating
4X
Phase
Single
IP Rating
IP67
Number of Outlets
1
Resistance Properties
Weather Resistant
Connection Orientation
Straight
Current Rating
20 A
Hub Type
Dead End
Features
Advanced Lid Design, Battle the Elements, Durable, More Secure
Grounding
Grounded
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
60 Degrees C
Housing Material
Nylon
Item
Locking Receptacle
Housing Color
Black
Shrouded
Yes
For Environment
Industrial
Market
Industrial
Cover Type
Flip-Up Cover
Wire Connection Type
Screw Terminals
Flange Type
Non-Flanged
UL 94 Flammability Rating
V-2
Contact Material
Brass
NEMA Receptacle Configuration
L21-20R
Number of Wires
5
Standards
ANSI C-73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498, UL Fed Spec WC-596 File E13399

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 20 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Black, Housing Material Nylon, Mount Type Not Applicable, NEMA Enclosure Rating 4X, NEMA Receptacle Configuration L21-20R, Number of Gangs 1, Number of Poles 4, Number of Wires 5, Phase Single, Shrouded Yes, Voltage Rating 120/208V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, Contact Material Brass, Cover Type Flip-Up Cover
