Shop LEVITON

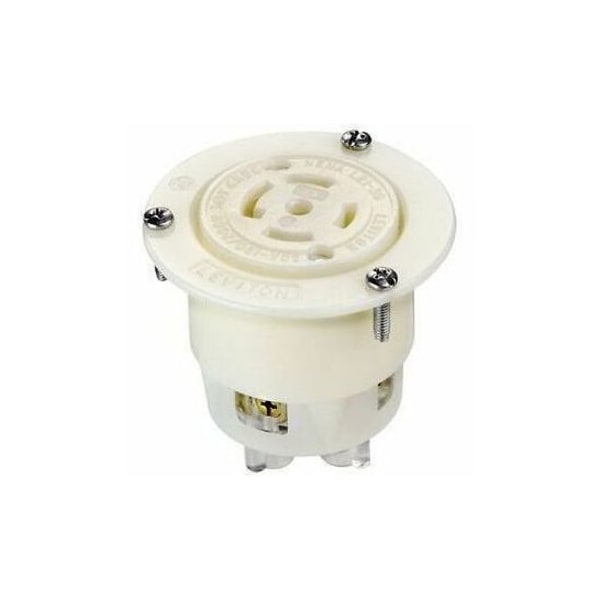

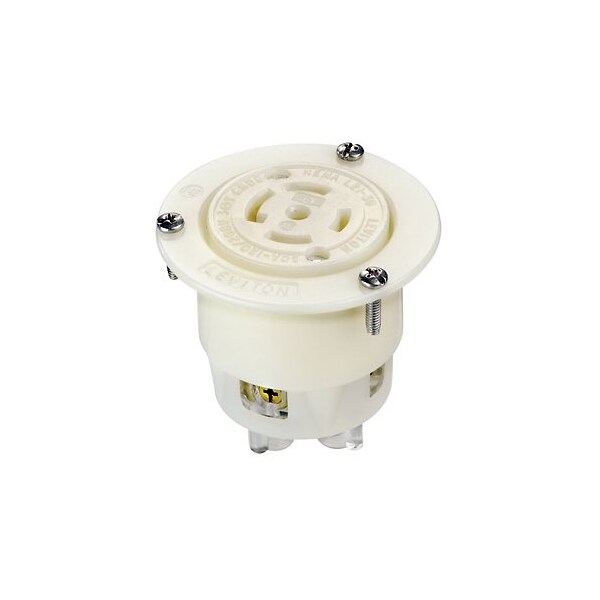

LockingReceptacle, 30A, 3hp, 120/208VAC, Wht

  • Mfr # 2816
  • Zoro # G222586761

product price:
$
116.99
/ea
Free Shipping & Returns

Key Features

Connection Orientation
Straight
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-40 Degrees C
Voltage Rating
120/208V AC
Standards
ANSI C-73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498, UL Fed Spec WC-596 File E13399
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2816
Zoro #
G222586761
UPC #
-
Country of Origin
Mexico
Connection Orientation
Straight
Wire Connection Type
Screw Terminals
Minimum Operating Temperature
-40 Degrees C
Voltage Rating
120/208V AC
Standards
ANSI C-73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498, UL Fed Spec WC-596 File E13399
Hub Type
Dead End
Current Rating
30 A
Flange Type
Non-Flanged
Housing Material
Nylon
IP Rating
Not Rated
Shrouded
Yes
Number of Wires
5
NEMA Receptacle Configuration
L21-30R
Midget Locking
No
For Environment
Industrial
NEMA Enclosure Rating
Not Rated
Series
Hubbell-PRO
Number of Outlets
2
Features
One Piece Contacts Reduce Friction and Overheating
Mount Type
Flush
Cover Type
No Cover
Grounding
Grounded
Maximum Operating Temperature
60 Degrees C
Number of Gangs
1
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Phase
Single
Housing Color
White
Contact Material
Brass
Market
Industrial
UL 94 Flammability Rating
V-2
Horsepower Rating
1 hp
Number of Poles
4
Item
Locking Receptacle

Dimensions

Face Diameter
3.03 in
Minimum Wire Size
18 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.75 in
Fits Chest Size
One Piece Contacts Reduce Friction and Overheating

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 30 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration L21-30R, Number of Gangs 1, Number of Poles 4, Number of Wires 5, Phase Single, Shrouded Yes, Voltage Rating 120/208V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, Cover Type No Cover
