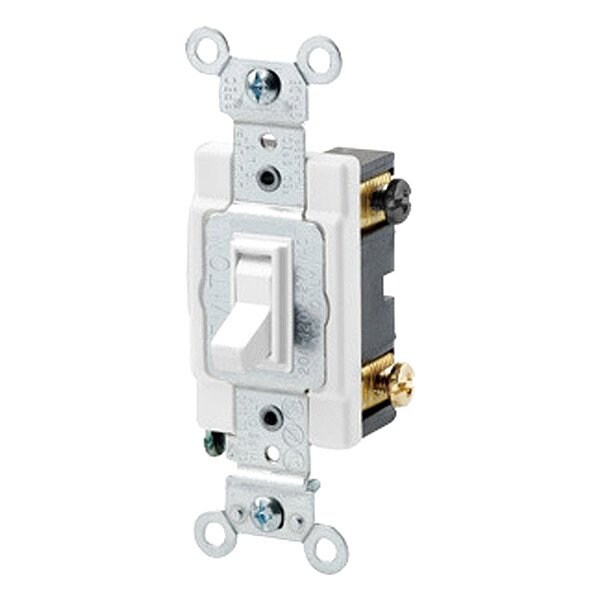

WallSwitch, 1hp, Toggle, 20A, White, PK1
Mfr # 54522-2W
Zoro # G122586595
product price:Â
$
192.99
/pk 10, $19.30/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions
Key Features
Voltage Rating
120/277V AC
Contact Material
Silver Alloy
Maximum Wire Size
12 AWG
Switch Material
Thermoplastic
Current Rating
20 A
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 54522-2W
- Zoro #
- G122586595
- UPC #
- 78477125502
- Country of Origin
- Mexico
Dimensions
- Maximum Wire Size
- 12 AWG
- Overall Height
- 4.1 in
- Overall Width
- 1.3 in
- Minimum Wire Size
- 14 AWG
Details
- Voltage Rating
- 120/277V AC
- Contact Material
- Silver Alloy
- Switch Material
- Thermoplastic
- Current Rating
- 20 A
- Switch Type
- Double Pole
- Wiring Method
- Side
- Maximum Operating Temperature
- 65 Degrees C
- Color
- White
- Horsepower Rating
- 1 hp
- Minimum Operating Temperature
- -40 Degrees C
- Market
- Commercial
- Wire Connection Type
- Screw Terminals
- Item
- Wall Switch
- Grounding
- Grounded
- Strap Material
- Steel
- Standards
- ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458
- Features
- 10-Year Limited, Withstands 1,500V for 1 minute
- Housing Material
- Thermoplastic
Description
Wall Switch, Color White, Current Rating 20 A, Switch Type Double Pole, Voltage Rating 120/277V AC, Wiring Method Side, Horsepower Rating 1 hp, Maximum Wire Size 12 AWG, Minimum Wire Size 14 AWG, Standards ANSI C-73, CSA C22 2 No. 111 File #152105, NEMA WD-1, NEMA WD-6, NOM 57, UL 20, UL FED SPEC WS896E File #E7458, Strap Material Steel, Switch Style Toggle, Wire Connection Type Screw Terminals, Contact Material Silver Alloy, Features 10-Year Limited, Withstands 1,500V for 1 minute
