Shop LEVITON

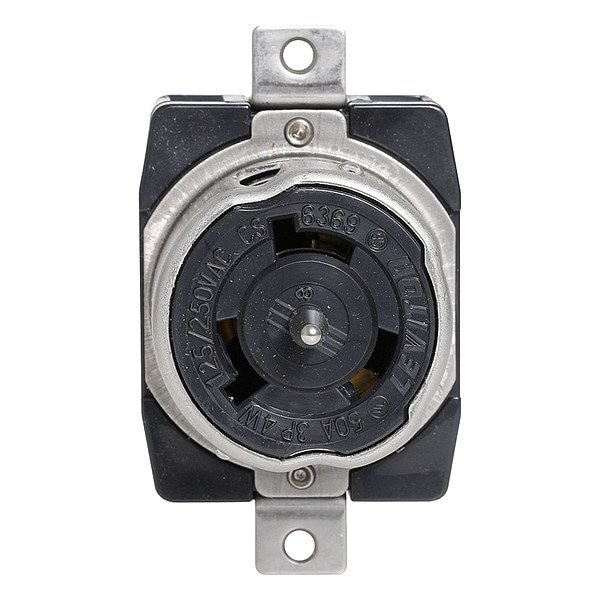

LockingReceptacle, 50A, 125/250VAC, Black

  • Mfr # CS6369

  • Zoro # G422586646

product price:
$
155.99
/ea
Free Shipping & Returns

Key Features

UL 94 Flammability Rating
V-0
Cover Type
No Cover
Hub Type
Dead End
Phase
Single
Voltage Rating
125/250V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CS6369
Zoro #
G422586646
UPC #
78477326282
Country of Origin
Mexico

Dimensions

Face Plate Height
2.69 in
Overall Depth
3.18 in
Face Plate Width
2.13 in
Mount Hole Center-to-Center Height
3.75 in
Maximum Wire Size
6 AWG
Minimum Wire Size
10 AWG

Details

UL 94 Flammability Rating
V-0
Cover Type
No Cover
Hub Type
Dead End
Phase
Single
Voltage Rating
125/250V AC
Series
Valise
Horsepower Rating
75 hp
Standards
ANSI C-73, CSA Certified, NEMA WD-1, NEMA WD-6, NOM 57, RoHS, UL
Number of Outlets
1
Resistance Properties
Corrosion Resistant
Grounding
Grounded
Housing Color
Black
Number of Poles
3
Item
Locking Receptacle
Flange Type
Non-Flanged
Number of Wires
4
Current Rating
50 A
Maximum Operating Temperature
167 Degrees F
IP Rating
Not Rated
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
Non-NEMA
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Housing Material
Nylon
Features
Extended Life Reduces Equipment Downtime, Premium Materials for Rugged Construction, Reduced Downtime Reduces Labor Costs and Increases Profits, Rugged Construction Extends Device Life
Shrouded
Yes
Midget Locking
No
Wire Connection Type
Screw Terminals
Contact Material
Brass
For Environment
Industrial
Connection Orientation
Straight
Number of Gangs
1

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 50 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Black, Housing Material Nylon, Mount Type Not Applicable, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration Non-NEMA, Number of Gangs 1, Number of Poles 3, Number of Wires 4, Phase Single, Shrouded Yes, Voltage Rating 125/250V AC, Wire Connection Type Screw Terminals, Wiring Style Hinged, Contact Material Brass, Cover Type No Cover
