Shop LEVITON

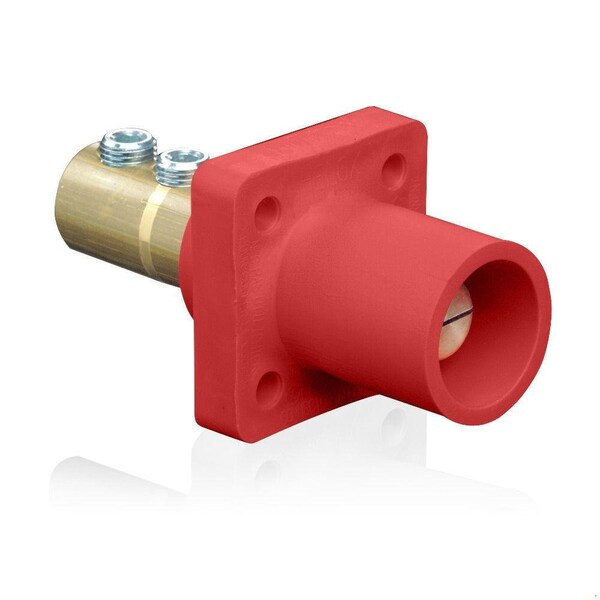

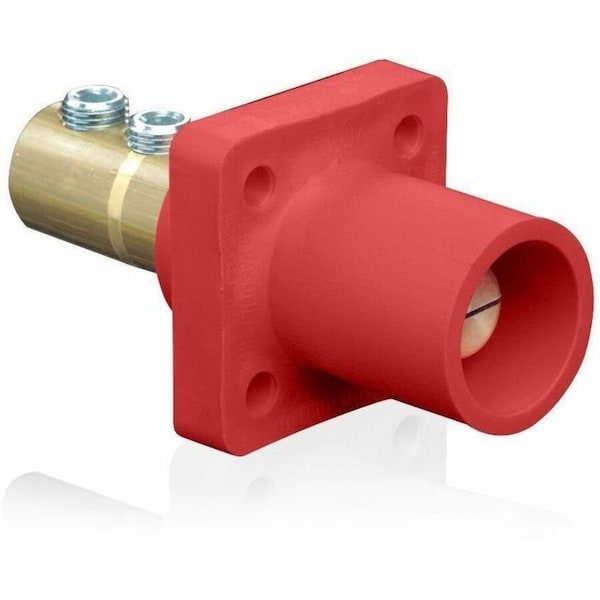

Male Receptacle

  • Mfr # 16R21-UR

  • Zoro # G315867036

product price:  $52.19
/ea

Key Features

Current Rating
400 A
Voltage Rating
600V AC, 600V DC
Standards
CSA Standard : 1691, UL 1691
Overall Length
2.66 in
Gender
Male
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16R21-UR
Zoro #
G315867036
UPC #
078477716755
Country of Origin
Mexico

Dimensions

Overall Length
2.66 in
Maximum Wire Size
4/0 AWG
Overall Width
2.28 in
Flange Height
2.28 in
Flange Width
0.5 in
Minimum Wire Size
2/0 AWG
Wire Rope Length
2.66 in

Details

Item
Single Pole Receptacle
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
Standards
CSA Standard : 1691, UL 1691
Gender
Male
Terminal Connection Type
Double Set Screw
Housing Material
Santoprene TPV
Connection Orientation
Angled
Phase
Single
For Location
Indoor, Outdoor
Flange Shape
Square
Housing Color
Red
NEMA Enclosure Rating
3R
End Type
Taper Nose
Contact Material
Brass
Mounting Style
Through Hole Mounting
Series
16

Description

Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Male, Housing Color Red, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2/0 AWG, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Diameter Not Applicable, Flange Height 2.28 in, Flange Shape Square, Flange Width 0.5 in, NEMA Enclosure Rating 3R, Standards CSA Standard : 1691, UL 1691, Terminal Connection Type Double Set Screw
