Shop LEVITON

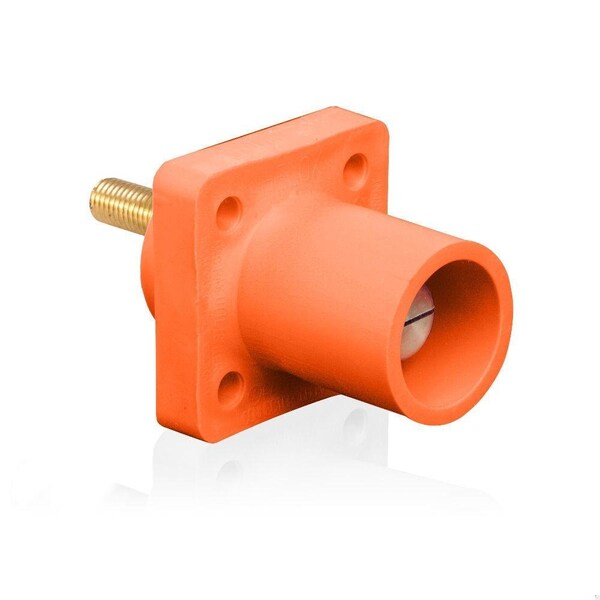

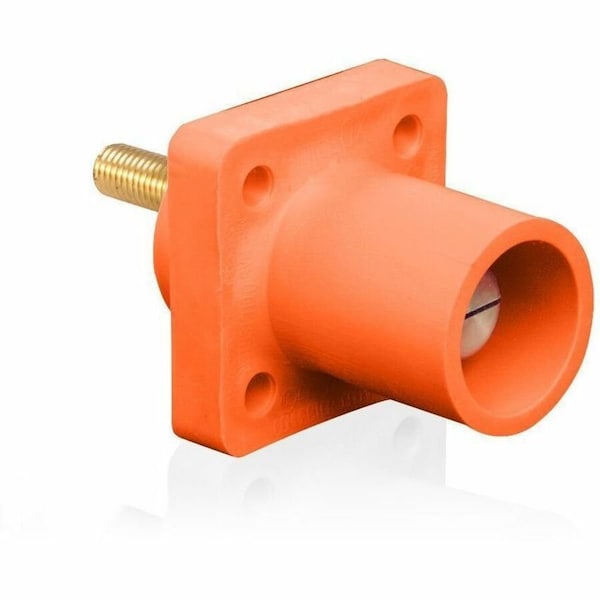

Male Receptacle

  • Mfr # 16R23-1UO

  • Zoro # G215866832

product price:  $40.29
/ea

Key Features

Current Rating
400 A
Voltage Rating
600V AC, 600V DC
Standards
CSA Standard : 1691, UL 1691
Phase
Single
Minimum Wire Size
2 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16R23-1UO
Zoro #
G215866832
UPC #
078477717240
Country of Origin
Mexico

Dimensions

Minimum Wire Size
2 AWG
Overall Length
2.56 in
Overall Width
2.28 in
Flange Height
2.28 in
Maximum Wire Size
4/0 AWG
Stud Thread Size
1/2"-13
Flange Width
0.5 in

Details

Item
Single Pole Receptacle
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
Standards
CSA Standard : 1691, UL 1691
Phase
Single
NEMA Enclosure Rating
3R
Housing Material
Santoprene TPV
Terminal Connection Type
Threaded Stud
Contact Material
Brass
For Location
Indoor, Outdoor
Mounting Style
Threaded Mounting
Connection Orientation
Straight
Flange Shape
Square
Housing Color
Orange
End Type
Taper Nose
Gender
Male

Description

Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Male, Housing Color Orange, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Diameter Not Applicable, Flange Height 2.28 in, Flange Shape Square, Flange Width 0.5 in, NEMA Enclosure Rating 3R, Standards CSA Standard : 1691, UL 1691, Terminal Connection Type Threaded Stud
