Shop LEVITON

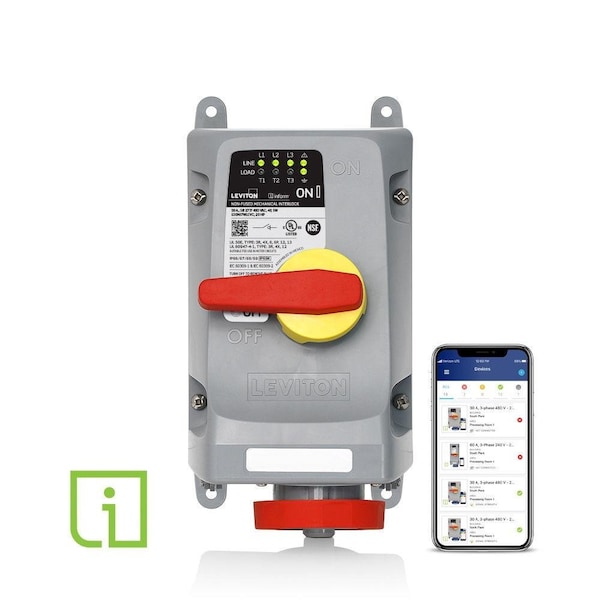

Pin and Sleeve Mechanical Interlock

  • Mfr # 530MI7WLEVC

  • Zoro # G116091593

product price:  $1,381.99
/ea
Free Shipping & Returns

Key Features

Overall Width
8.86 in
Contact Material
Nickel-Plated Brass
Overall Depth
8.29 in
Fuse Protection
Non-Fused
Housing Color
Red
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
530MI7WLEVC
Zoro #
G116091593
UPC #
078477225462
Country of Origin
Mexico

Dimensions

Overall Width
8.86 in
Overall Depth
8.29 in
Overall Height
12.16 in

Details

Item
Mechanical Interlock
Contact Material
Nickel-Plated Brass
Fuse Protection
Non-Fused
Housing Color
Red
Horsepower Rating
20 hp
Resistance Properties
UV/Sunlight Resistant, Watertight
Handle Material
PBT+PC with TPE Overmold
Electrical Connection Type
Pin and Sleeve
Compatible with Series
LEV
NEMA Enclosure Rating
12, 3R, 4X
Phase
Three
IP Rating
IP66, IP67, IP68, IP69, IP69K
UL 94 Flammability Rating
V-0
Standards
CSA C22.2 No. 94.1-07, IEC Rating 60309-1, 60309-2, 60309-4, NSF 14159-1, UL 1682, UL 1686, UL 50, UL 50E, UL 60947-4-1, UL 60947-1, UL 746
Current Rating
30 A
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
75 Degrees C
Number of Wires
5
Voltage Rating
277/480V AC
Number of Poles
4
Housing Material
PBT
Locking Handle
Yes
Series
LEV
Features
Wi-Fi Remote Monitoring
Reverse Service
No
Circuit Breaker
No

Description

Pin and Sleeve Mechanical Interlock
