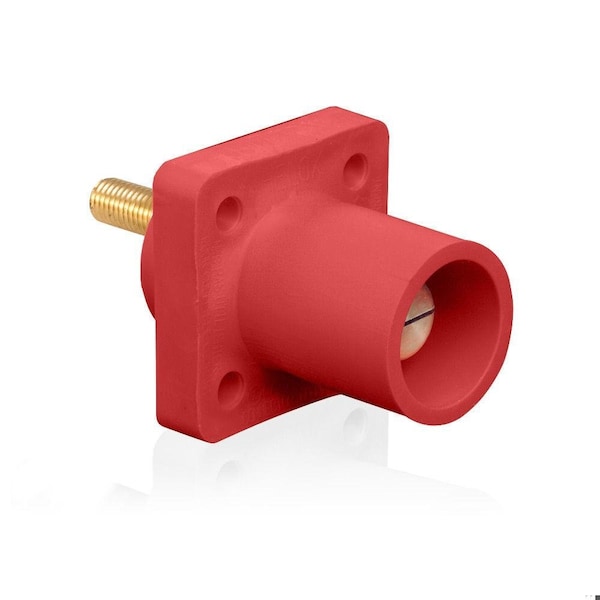

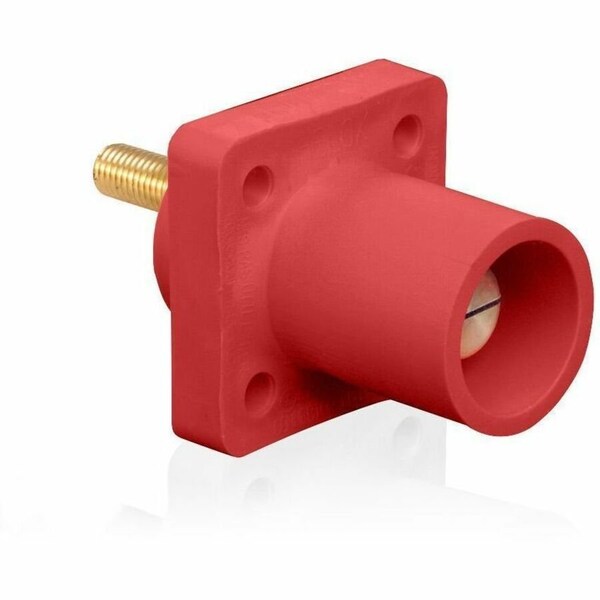

Male Receptacle
- Mfr # 16R23-1UR
- Zoro # G915867139
product price:Â
$
45.55
/ea
Key Features
Voltage Rating
600V AC, 600V DC
Standards
CSA Standard : 1691, UL 1691
Current Rating
400 A
Flange Height
2.28 in
Mounting Style
Threaded Mounting
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16R23-1UR
- Zoro #
- G915867139
- UPC #
- 078477717165
- Country of Origin
- Mexico
- Item
- Single Pole Receptacle
- Voltage Rating
- 600V AC, 600V DC
- Standards
- CSA Standard : 1691, UL 1691
- Current Rating
- 400 A
- Mounting Style
- Threaded Mounting
- Terminal Connection Type
- Threaded Stud
- NEMA Enclosure Rating
- 3R
- Flange Shape
- Square
- Connection Orientation
- Straight
- Contact Material
- Brass
- Housing Material
- Santoprene TPV
- Housing Color
- Red
- Gender
- Male
- Phase
- Single
- For Location
- Indoor, Outdoor
- End Type
- Taper Nose
- Series
- 16
Dimensions
- Flange Height
- 2.28 in
- Maximum Wire Size
- 4/0 AWG
- Stud Thread Size
- 1/2"-13
- Minimum Wire Size
- 2 AWG
- Flange Width
- 0.5 in
- Overall Width
- 2.28 in
- Overall Length
- 2.56 in
- Threaded Stud Termination Length
- 1.125 in
- Wire Rope Length
- 2.56 in
- Length
- 2.56 in
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Male, Housing Color Red, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Diameter Not Applicable, Flange Height 2.28 in, Flange Shape Square, Flange Width 0.5 in, NEMA Enclosure Rating 3R, Standards CSA Standard : 1691, UL 1691, Terminal Connection Type Threaded Stud
