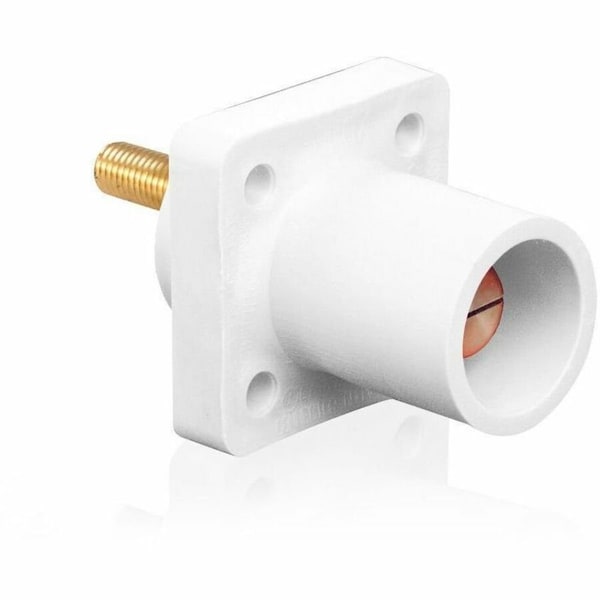

Male Receptacle
Mfr # 16R23-1UW
Zoro # G115866864
product price: $37.29
/eaKey Features
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
Standards
CSA Standard : 1691, UL 1691
Phase
Single
Overall Width
2.28 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
16R23-1UW
Zoro #
G115866864
UPC #
078477717127
Country of Origin
Mexico
Dimensions
Overall Width
2.28 in
Maximum Wire Size
4/0 AWG
Stud Thread Size
1/2"-13
Overall Length
2.56 in
Minimum Wire Size
2 AWG
Flange Width
0.5 in
Flange Height
2.28 in
Details
Item
Single Pole Receptacle
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
Standards
CSA Standard : 1691, UL 1691
Phase
Single
End Type
Taper Nose
Contact Material
Brass
Housing Color
White
Housing Material
Santoprene TPV
For Location
Indoor, Outdoor
NEMA Enclosure Rating
3R
Gender
Male
Flange Shape
Square
Connection Orientation
Straight
Mounting Style
Threaded Mounting
Terminal Connection Type
Threaded Stud
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Male, Housing Color White, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Diameter Not Applicable, Flange Height 2.28 in, Flange Shape Square, Flange Width 0.5 in, NEMA Enclosure Rating 3R, Standards CSA Standard : 1691, UL 1691, Terminal Connection Type Threaded Stud
