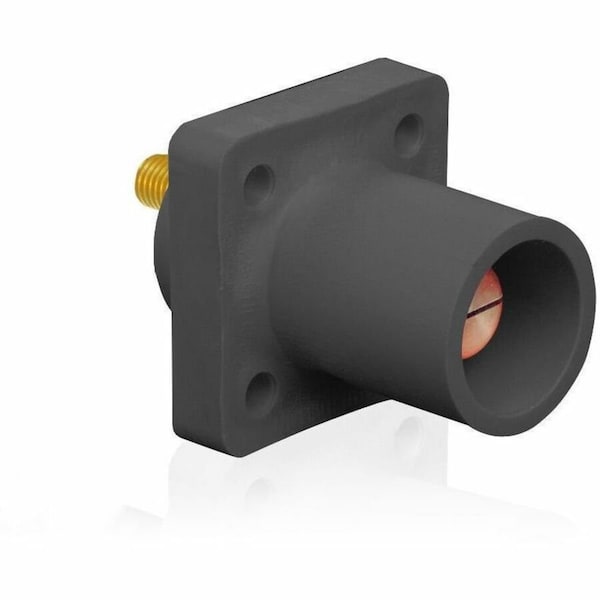

Male Receptacle
Mfr # 16R23-UE
Zoro # G615866999
product price: $37.59
/eaKey Features
Voltage Rating
600V AC, 600V DC
Current Rating
400 A
Standards
CSA Standard : 1691, UL 1691
Connection Orientation
Straight
Minimum Wire Size
2 AWG
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
16R23-UE
Zoro #
G615866999
UPC #
078477716915
Country of Origin
Mexico
Dimensions
Minimum Wire Size
2 AWG
Flange Height
2.28 in
Stud Thread Size
1/2"-13
Maximum Wire Size
4/0 AWG
Overall Width
2.28 in
Overall Length
3.44 in
Flange Width
0.5 in
Details
Voltage Rating
600V AC, 600V DC
Current Rating
400 A
Standards
CSA Standard : 1691, UL 1691
Item
Single Pole Receptacle
Connection Orientation
Straight
Terminal Connection Type
Threaded Stud
For Location
Indoor, Outdoor
Phase
Single
NEMA Enclosure Rating
3R
Mounting Style
Threaded Mounting
Housing Material
Santoprene TPV
Gender
Male
End Type
Taper Nose
Contact Material
Brass
Housing Color
Black
Flange Shape
Square
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Male, Housing Color Black, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Diameter Not Applicable, Flange Height 2.28 in, Flange Shape Square, Flange Width 0.5 in, NEMA Enclosure Rating 3R, Standards CSA Standard : 1691, UL 1691, Terminal Connection Type Threaded Stud
