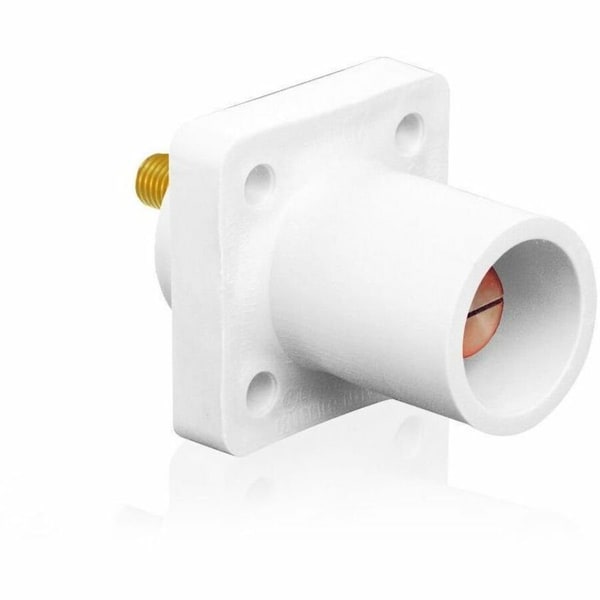

Male Receptacle
Mfr # 16R23-UW
Zoro # G315866794
product price: $43.59
/eaKey Features
Standards
CSA Standard : 1691, UL 1691
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
Mounting Style
Threaded Mounting
NEMA Enclosure Rating
3R
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
16R23-UW
Zoro #
G315866794
UPC #
078477716892
Country of Origin
Mexico
Dimensions
Flange Width
0.5 in
Maximum Wire Size
4/0 AWG
Stud Thread Size
1/2"-13
Overall Length
3.44 in
Minimum Wire Size
2 AWG
Overall Width
2.28 in
Flange Height
2.28 in
Details
Standards
CSA Standard : 1691, UL 1691
Item
Single Pole Receptacle
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
Mounting Style
Threaded Mounting
NEMA Enclosure Rating
3R
Housing Color
White
Phase
Single
Contact Material
Brass
End Type
Taper Nose
Housing Material
Santoprene TPV
For Location
Indoor, Outdoor
Connection Orientation
Straight
Gender
Male
Flange Shape
Square
Terminal Connection Type
Threaded Stud
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Male, Housing Color White, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Diameter Not Applicable, Flange Height 2.28 in, Flange Shape Square, Flange Width 0.5 in, NEMA Enclosure Rating 3R, Standards CSA Standard : 1691, UL 1691, Terminal Connection Type Threaded Stud
