Plugs and Receptacles
- Mfr # 16R19-UY
- Zoro # G022587906
product price:Â
$
47.99
/ea
Key Features
Flange Width
2.28 in
Minimum Operating Temperature
-40 Degrees F
Connection Orientation
Straight
Current Rating
400 A
Flange Height
2.28 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16R19-UY
- Zoro #
- G022587906
- UPC #
- 78477859889
- Country of Origin
- Mexico
- Minimum Operating Temperature
- -40 Degrees F
- Connection Orientation
- Straight
- Current Rating
- 400 A
- Flange Shape
- Square
- Series
- 16
- Contact Material
- Brass
- For Location
- Outdoor
- End Type
- Taper Nose
- Terminal Connection Type
- Half Round with Tapped Hole
- Item
- Single Pole Receptacle
- Gender
- Male
- Maximum Operating Temperature
- 185 Degrees F
- Housing Color
- Yellow
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- NEMA Enclosure Rating
- 3R
- Voltage Rating
- 600V AC, 600V DC
- Mounting Style
- Through Hole Mounting
- Standards
- CSA, UL
- Housing Material
- Nylon
Description

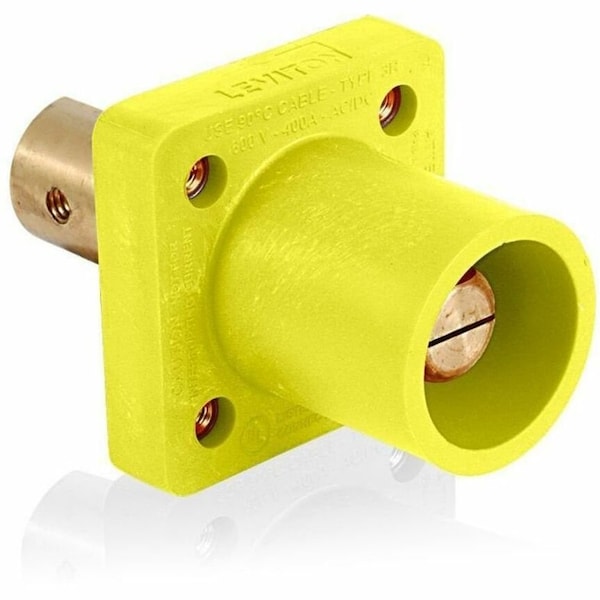

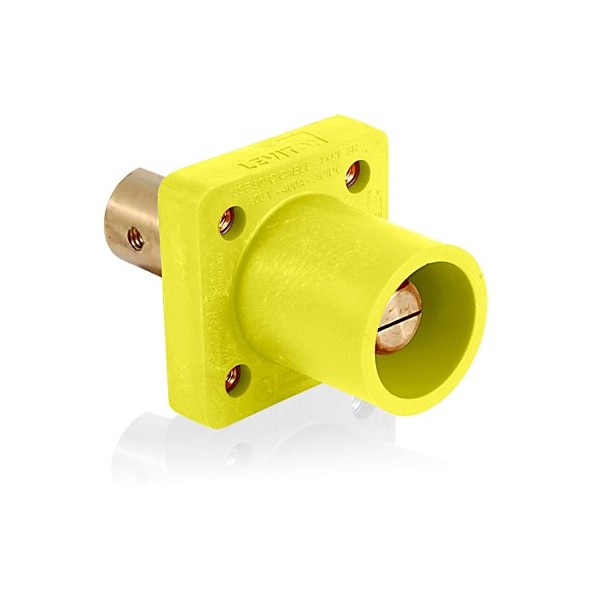

Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Male, Housing Color Yellow, Housing Material Nylon, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.28 in, Flange Shape Square, Flange Width 2.28 in, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Half Round with Tapped Hole, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
