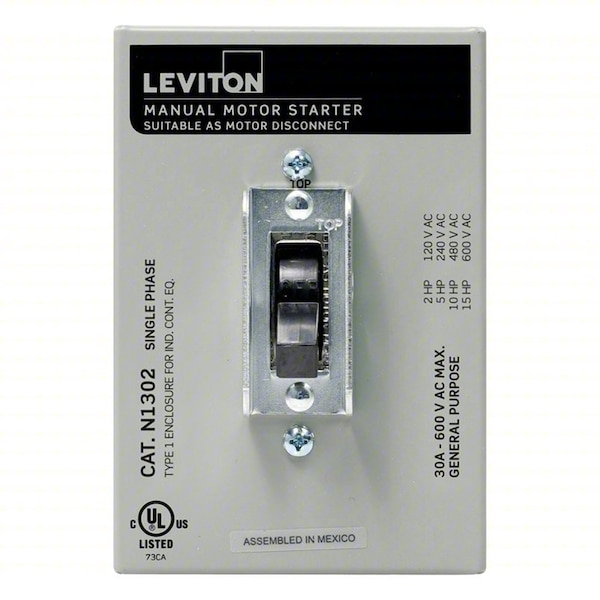

Leviton Manual Motor Switch, 30 A, 2 P, 1 Phase, Toggle, Powerswitch Series, NEMA 1 N1302-DS - main

Manual Motor Switch, 30 A, 2 P, 1 Phase, Toggle, Powerswitch Series, NEMA 1

  • Mfr # N1302-DS

  • Zoro # G716525269

product price:  $57.49
/ea

Key Features

Number of Gangs
1
Current AC
30 A
Includes Pilot Light
No
Number of Poles
2
Phase
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
N1302-DS
Zoro #
G716525269
UPC #
078477374214
Country of Origin
Mexico

Dimensions

Overall Width
3.26 in
Mounting Hole Distance - Height
3 in
Mounting Hole Diameter
0.25 in
Overall Depth
3.17 in
Mounting Hole Distance - Width
2 in
Overall Height
4.75 in

Details

Item
Manual Motor Controller
Number of Gangs
1
Current AC
30 A
Includes Pilot Light
No
Number of Poles
2
Phase
1
Operator
Toggle
Starter Style
NEMA
Terminal Connection Type
Screw
Maximum Voltage Rating
600V AC
Series
Powerswitch
Mounting Style
Surface
NEMA Enclosure Rating
NEMA 1
Standards
ANSI C-73, NEMA WD-1 and WD-6, NOM-ANCE
Horsepower @ Three Phase - 208V AC
Not Rated
Hub Type
Feed Through
Horsepower @ Three Phase - 480V AC
Not Rated
Maximum Operating Temperature
60 Degrees C
Hazardous Location Specification
Not Rated
Contact Material
Silver Cadmium Oxide
Horsepower @ Single Phase - 120V AC
2 hp
IP Rating
Not Rated
Horsepower @ Three Phase - 600V AC
Not Rated
Resistance Properties
Chemical Resistant, Impact Resistant, Temperature Resistant
Minimum Operating Temperature
-40 Degrees C
Horsepower @ Single Phase - 240V AC
5 hp
Horsepower @ Three Phase - 240V AC
Not Rated

Description

Double-Pole AC Manual Motor Controller
