Shop LEVITON

Plugs and Receptacles

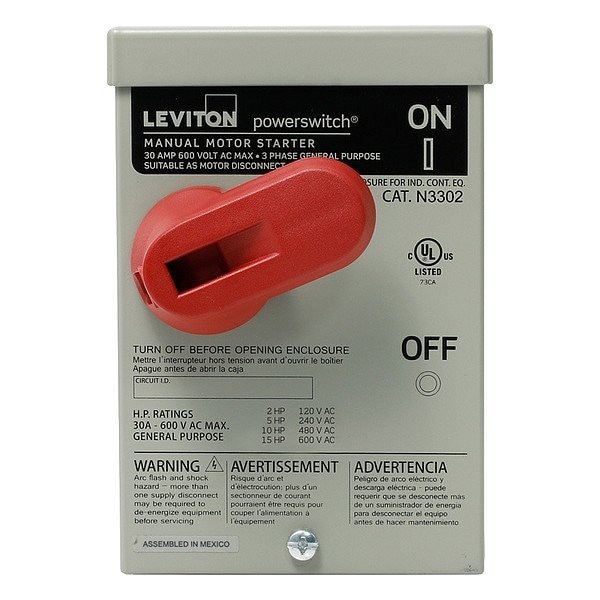

  • Mfr # N3302-DS

  • Zoro # G222587010

product price:
$
93.15
/ea

Key Features

Series
Powerswitch
Horsepower @ Single Phase - 240V AC
5 hp
Current AC
30 A
Overall Height
6.15 in
Horsepower @ Single Phase - 120V AC
2 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
N3302-DS
Zoro #
G222587010
UPC #
78477374405
Country of Origin
Mexico

Dimensions

Overall Height
6.15 in
Overall Depth
4.13 in
Overall Width
4.3 in

Details

Series
Powerswitch
Horsepower @ Single Phase - 240V AC
5 hp
Current AC
30 A
Horsepower @ Single Phase - 120V AC
2 hp
Number of Poles
2
Horsepower @ Three Phase - 240V AC
5 hp
Terminal Connection Type
Screw Terminals
Minimum Operating Temperature
-40 Degrees F
NEMA Enclosure Rating
3R
Horsepower @ Three Phase - 600V AC
15 hp
Hazardous Location Specification
Not Rated
Horsepower @ Three Phase - 480V AC
10 hp
Maximum Voltage Rating
600V AC
Mounting Style
Through Panel
Contact Material
Silver Cadmium Oxide
Horsepower @ 230V DC
5 hp
Operator
Toggle Switch
Resistance Properties
Chemical Resistant, Impact Resistant, Temperature Resistant
Starter Style
NEMA
Maximum Operating Temperature
140 Degrees F
Horsepower @ 115V DC
2 hp
Standards
ANSI C-73, CUL per CSA C22 2 NO 111 File #E63969, NEMA WD-1 and WD-6, NOM-ANCE, UL 60947-4-1 UL 508, UL 94 V0
Includes Pilot Light
No
Item
Manual Motor Controller
Phase
Single

Description

Manual Motor Controller, Current AC 30 A, Hazardous Location Specification Not Rated, Horsepower @ Single Phase - 120V AC 2 hp, Horsepower @ Single Phase - 240V AC 5 hp, Horsepower @ Three Phase - 240V AC 5 hp, Horsepower @ Three Phase - 480V AC 10 hp, Horsepower @ Three Phase - 600V AC 15 hp, Includes Pilot Light No, Number of Poles 2, Operator Toggle Switch, Phase Single, Starter Style NEMA, Terminal Connection Type Screw Terminals, Hub Diameter Not Applicable, Hub Type Not Applicable
