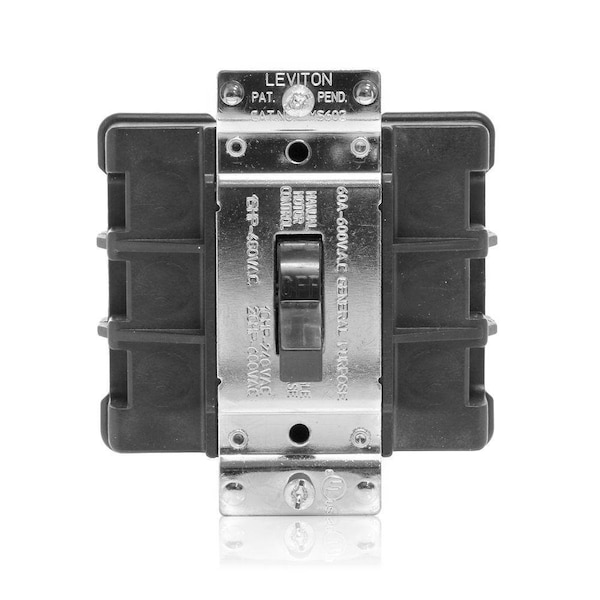

Manual Motor Switch, 60 A, 3 P, 3 Phase, Toggle, Powerswitch Series, No Enclosure

Mfr # MS603-BW
Zoro # G316091362

140.99

Free Shipping & Returns

Key Features

Number of Gangs

Current AC

60 A

Includes Pilot Light

Number of Poles

Phase

See all product information

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Create Account

Get 10% off your order

Specifications

Product Information

MFR #: MS603-BW
Zoro #: G316091362
UPC #: 078477073742
Country of Origin: Mexico

Dimensions

Overall Depth: 2.5 in
Overall Width: 3.43 in
Overall Height: 3.75 in

Details

Item: Manual Motor Switch
Number of Gangs: 1
Current AC: 60 A
Includes Pilot Light: No
Number of Poles: 3
Phase: 3
Operator: Toggle
Starter Style: NEMA
Terminal Connection Type: Screw
Maximum Voltage Rating: 600V AC
Series: Powerswitch
Mounting Style: Surface
NEMA Enclosure Rating: No Enclosure
Standards: ANSI C-73, NEMA WD-1 and WD-6, NOM-ANCE, RoHS
Horsepower @ Single Phase - 240V AC: Not Rated
Minimum Operating Temperature: -40 Degrees F
Horsepower @ Three Phase - 600V AC: 30 hp
Hub Type: Feed Through
Horsepower @ Single Phase - 120V AC: Not Rated
Resistance Properties: Chemical Resistant, Impact Resistant, Temperature Resistant
Contact Material: Silver Alloy
Maximum Operating Temperature: 140 Degrees F
Hazardous Location Specification: Not Rated
Horsepower @ Three Phase - 480V AC: 25 hp
Horsepower @ Three Phase - 208V AC: Not Rated
IP Rating: Not Rated
Horsepower @ Three Phase - 240V AC: 10 hp

Description

Three-Phase AC Manual Motor Controller
