  11. Midget Locking Connector, ML2-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals

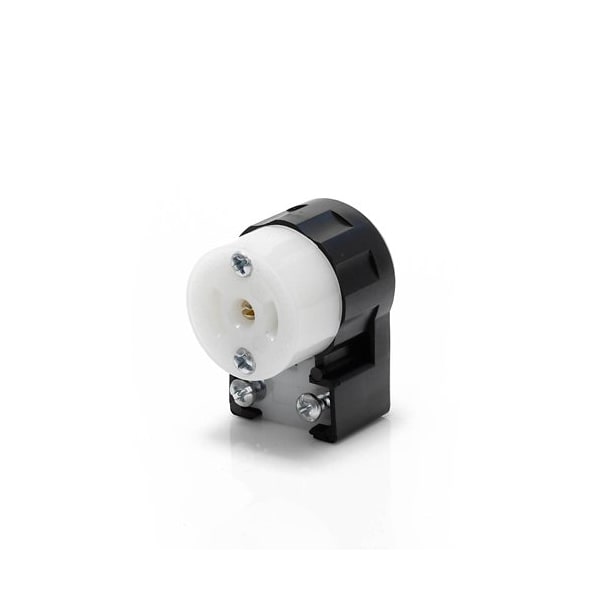

Leviton Midget Locking Connector, ML2-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals ML2-AC - main

Midget Locking Connector, ML2-15R, 15 A, 125V AC, Single Phase, 2 Pole, Screw Terminals

  • Mfr # ML2-AC

  • Zoro # G804255962

product price: $22.19
/ea

Key Features

NEMA Receptacle Configuration
ML2-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ML2-AC
Zoro #
G804255962
UPC #
07847798730
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
0.4375 in
For Minimum Cable Diameter
0.218 in
Minimum Wire Size
18 AWG
Overall Length
1.78 in
Outside Diameter
1.22 in
Maximum Wire Size
14 AWG
Face Diameter
1.13 in

Details

Item
Midget Locking Connector
NEMA Receptacle Configuration
ML2-15R
Current Rating
15 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
Wire Connection Type
Screw Terminals
Wiring Style
Standard
Connection Orientation
Angled
Shrouded
No
Grounding
Grounded
Housing Color
Black, White
Cap Type
No Cap
IP Rating
Not Rated
Standards
ANSI, CSA C22.2 No. 42, NEMA, NOM, UL Fed Spec WC-596
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Material
Impact Modified Nylon
Body Material
Impact Modified Nylon
Grade
Federal Specification
For Environment
Dry
Contact Material
Brass
Market
Industrial
Minimum Operating Temperature
-40 Degrees F
Insulation Material
Nylon
Housing Material
Nylon
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
Not Rated
Polarized
Yes
UL 94 Flammability Rating
HB
Midget Locking
Yes
Flame Resistant
Rated HB or better UL94
Dielectric Strength
Withstands 2000V per UL498
NEMA Rating
ML2R

Description

Locking Connector, Connection Orientation Angled, Current Rating 15 A, Housing Color Black, White, Housing Material Nylon, IP Rating Not Rated, NEMA Receptacle Configuration ML2-15R, Number of Poles 2, Number of Wires 3, Polarized Yes, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, Shrouded No, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Cap Type No Cap or Cover, Contact Material Brass, Face Diameter 1.13 in
