  11. ModRecept, LtAlmd, 20A, GFCI, 2P3W, Bk;Sd, 1PK

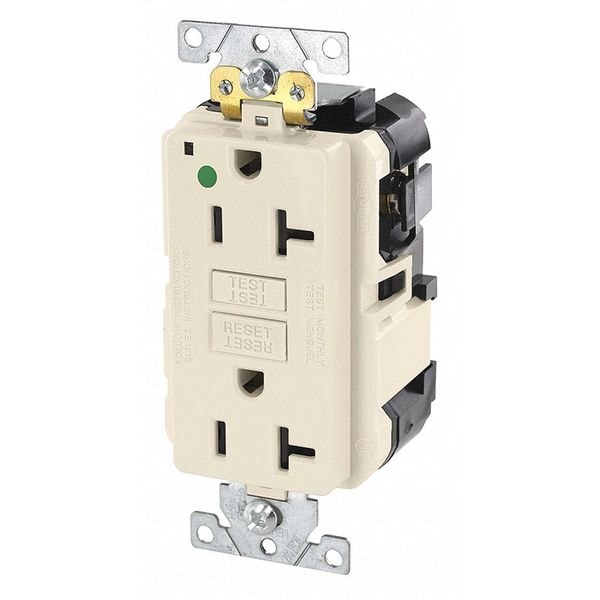

Leviton ModRecept, LtAlmd, 20A, GFCI, 2P3W, Bk;Sd, 1PK MGFN2-HGT - main

ModRecept, LtAlmd, 20A, GFCI, 2P3W, Bk;Sd, 1PK

  • Mfr # MGFN2-HGT

  • Zoro # G504392912

product price: $35.15
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MGFN2-HGT
Zoro #
G504392912
UPC #
07847772440
Country of Origin
China

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Face Plate Height
2.8 in
Overall Depth
1.2 in

Details

Item
Modular Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
Light Almond
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA Certified, Federal Specification, RoHS Compliant, UL Listed
Tamper Resistant
No
Special Features
Circuit ID Label for Identification, Solid Brass Locking Pin
Voltage - Plugs and Receptacles
125V
Amps - Plugs and Receptacles
20 A
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Item - Plugs and Receptacles
GFCI Receptacle
Surge Suppression
Yes
HP
1 hp
Color - Plugs and Receptacles
Light Almond
Power Indicator
Yes
Weather Resistant - Plugs and Receptacles
No
Self-Testing
Yes
Outlet Type - Plugs and Receptacles
Duplex
Wiring Method - Plugs and Receptacles
Back and Side
Application Environment
Hospital Grade
Wiring Method
Back, Side
Voltage
125 VAC
Color
Light Almond
Receptacle Type
Decorator Duplex
Hub Type
Feed Through
Maximum Operating Temperature
150.8 Degrees F
Includes Mounting Hardware
Yes
Horsepower Rating
1 hp
Self Testing
Yes
Voltage Rating
125V AC
Mount Type
Flush
Minimum Operating Temperature
-31 Degrees F
Visual Indicator Lights
Power Connected
Wire Connection Type
Modular Wiring
Surge Protection
Yes
UL 94 Flammability Rating
V-0
Grade
Hospital Grade Fed. Spec.
Contact Material
Brass
Amperage
20 A
Terminal Screws
Plated Steel
Feature 3
Power Indication
Body Material
Polycarbonate
Face Material
PBT
Line Contacts
Brass
At Rated Voltage
1 HP
Function
GFCI
Strap Material
Galvanized Steel
Short Circuit Current Rating
2kA
NEMA
WD-1 & WD-6
Feed-Through Current
20 Amp
Ground Clips
Brass
Termination
Modular (line) and Back or Side Wire (load)
Operating Temperature
-35C to +66C
Pole
2
Device Type
Duplex Receptacle Outlet
Terminal Clamp
Brass
Flammability
Rated V-0 per UL 94
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Wire
3
ANSI
C-73
Screw Terminal Torque
14-18 in-lbs

Description

Modular Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Light Almond, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
