  6. Occupancy Sensor, Pir/Ult, 2400Sq Ft, Ivory

This item is Discontinued.

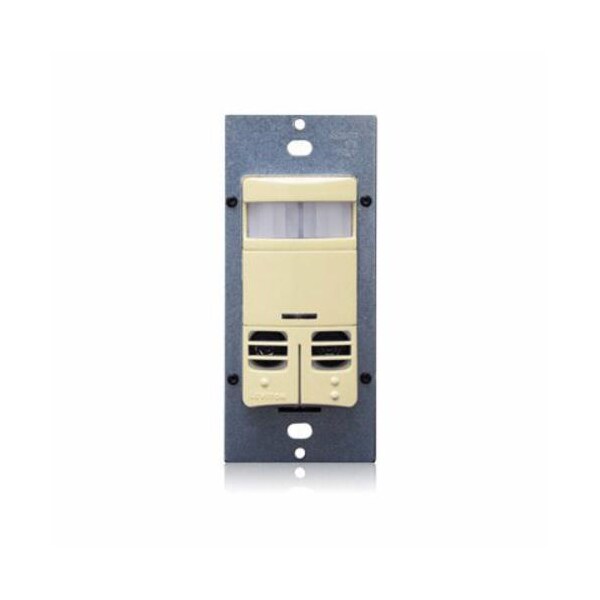

Leviton Occupancy Sensor, Pir/Ult, 2400Sq Ft, Ivory OSSMD-GDI

Occupancy Sensor, Pir/Ult, 2400Sq Ft, Ivory (Discontinued)

  • Mfr # OSSMD-GDI
  • Zoro # G3845878
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
OSSMD-GDI
Zoro #
G3845878
UPC #
78477403143
Country of Origin
Mexico

Dimensions

Coverage at Suggested Mounting Height
2400 sq. ft.
Width
1.88 in
Height
4.62 in
Length
2.88 in
Size
Height 4.06" (103.2mm), Width 1.75" (44.4mm), Depth 1.83" (47mm), Install Depth 1.35" (34.4mm), Install Height 2.06" (66.2mm)
Dimensions
46 in H x 1.75 in W x 1.83 in D

Details

Item - Motion Sensing and Dimming
Occupancy Sensor
Sensing Technology
Passive Infrared, Ultrasonic
Installation Location - Motion Sensor
Wall Switch Box
Operating Voltage - Motion Sensing and Dimming
120VAC, 277VAC
Color - Motion Sensing and Dimming
Ivory
Time Delay Adjustment Method - Motion Sensor
Adaptive
Time Delay - Motion Sensor
30 sec. to 30 min.
Max. Capacity @ 120VAC
500W (Fluorescent, Incandescent)
Timer Range
30 sec. to 30 min.
Lighting Technology
Fluorescent, Incandescent
Voltage
120/277VAC
Max. Capacity @ 277VAC
1200W (Fluorescent, Incandescent)
Includes
Photocell
Color
Ivory
Standards
ETL/cETL, CA Title 24 Compliant
Type
Occupancy Sensor;Single-Pole Switch;Dual Relay
Switch Type
Single-Pole, Dual Relay
Installation Type
Wall
Time Delay
Adaptive
Description/Special Features
Dual Relay, No Neutral Required
Coverage Angle - Motion Sensor
180 Degrees
Item
Dual Technology Occupancy Sensor
Grade
Commercial
Coverage
2400 sq. ft.
Viewing Angle
180 Degrees
Sensor Type
Passive Infrared/Ultrasonic
Watts @ 277V
(2) 1200
For Use With
Fluorescent and Incandescent Lighting Loads
Watts @ 120V
(2) 800
Relative Humidity
20% to 90% non-condensing
Product Type
Occupancy Sensor
Listings
ETL/cETL listed, CSA, FCC and NOM. Can be used to comply with IECC, ASHRAE 90.1, and Title 24, Part 6 occupancy/vacancy sensing requirements
Pattern
180°
Operating Temperature
32° to 104°F (0° to 40°C)
Load Rating
Primary Relay: LED:10A @ 120V 10A @ 277V Fluorescent: 1200VA @ 120V 2700VA @ 277V Incandescent: 800W @ 120V - Secondary Relay: LED:10A @ 120V 10A @ 277V Fluorescent: 800VA @ 120V 1200VA @ 277V Incandescent: 800W @ 120V Motor: 1/4 HP
Storage Temperature Range
14° to 185°F (-10° to 85°C)
Power Consumption
120V 140mW, 277V 360mW
Wiring
Primary Relay: No. 16 AWG leads: Line: Black, Load: Blue Ground: Green, White: Neutral (where provided) - Secondary Relay: No. 16 AWG isolated contact leads: (2) Red
USMCA Compliant
Yes
Sensor Technology
Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
Mounting
Wall Switch
Mounting Type
Wall Switch
Frequency
50/60Hz
Application
Private and Executive Offices, Conference Rooms, Classrooms, Restrooms, Storage Areas, Training Areas, Multimedia Rooms, Day Care Centers, Lounges, Retrofits, Bi-Level or A/B switching, Multi-location Switching
Neutral Wire Connection
Not Required
Relay Type
Dual Relay
Coverage (Sq.Ft.)
2400
Response Frequency
50/60 Hz
Standard
NAFTA (CF434);ETL\C-ETL Listed;CSA Certified;CEC Title 24 Compliant;FCC Compliant;NOM
Temperature Rating
0 to 40 °C
Voltage Rating
120/230/277 VAC
Frequency Rating
50/60 Hz
Lamp Type
Fluorescent/Incandescent
Environmental Conditions
Operating Temperature (0 to +40 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing)
Power Rating
210/410 mW
Control Output
Manual On/Automatic Off
Supply Voltage
120/230/277 VAC

Description

Dual-Relay, No Neutral, Multi-Technology Wall Switch Sensor, 2400 sq. ft. Major Motion Coverage, 400 sq. ft. Minor Motion Coverage, Ivory
