  11. Occupancy Sensor Power Pack, Gray

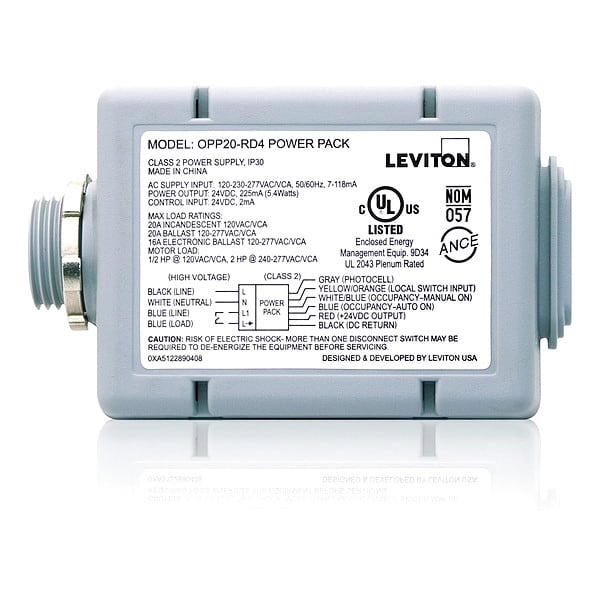

Leviton Occupancy Sensor Power Pack, Gray OPP20-RD4 - main

Occupancy Sensor Power Pack, Gray

  • Mfr # OPP20-RD4

  • Zoro # G904393472

product price: $50.89
/ea

Key Features

Color
Gray
Lighting Technology
LED
Item - Motion Sensing and Dimming
Occupancy Sensor Power Pack
Use With - Motion Sensing and Dimming
Occupancy Sensors
Standards
ASHRAE 90.1, RoHS Compliant, Title 24 Compliant
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OPP20-RD4
Zoro #
G904393472
UPC #
078477634028
Country of Origin
China

Dimensions

Overall Depth
1.43 in
Overall Width
3.81 in
Overall Height
2.4 in
Size
Height 2.40" (60.96mm), Width 3.81" (96.80mm), Depth 1.43" (36.37mm)

Details

Item
Power Pack
Color
Gray
Lighting Technology
LED
Item - Motion Sensing and Dimming
Occupancy Sensor Power Pack
Use With - Motion Sensing and Dimming
Occupancy Sensors
Standards
ASHRAE 90.1, RoHS Compliant, Title 24 Compliant
Description/Special Features
Built in Manual on Switching Control to Meet CA Title 24 Standards, First True Industry-Exclusive "Fail Safe" Design Assures Lights on Meeting Life Safety Requirements of NFPA 101, Models Support a Wide Range of Applications Including Switched Daylighting, Occupancy Sensing Control, Bi-Level Switching, and Metering/Mechanical Applications, Ndustry Exclusive Switched Daylighting Power Pack Models for Use With Wall Switches, Occupancy Sensors and Photocells, Overloaded At 16A, Robust and Reliable Mechanical Latching Relays Specifically Designed to Operate Led'S and High Inrush Electronic Ballast Loads, Robust Power Pack Meets Intense Plug Load Control Requirements of CA Title 24/ASHRAE 90.1, Surpasses Industry Standards for Short Circuit Protection (Nema 410 16 Amp Ballast Overload Testing), Tested to Exceed 1.5 Million Switching Cycles Under Standard Load
Operating Voltage - Motion Sensing and Dimming
120/230/277 V AC
Color - Motion Sensing and Dimming
Gray
Minimum Operating Temperature
32 Degrees F
Compatible with Brand
Leviton
Manufacturer Warranty
5 yr
Maximum Operating Temperature
122 Degrees F
Communication Method
Hard Wired
Input Voltage
120/208/220/230/240/277V AC
Compatible with Series
OPP20
Output Voltage
24V DC
Output Current
225 mA
Application
Can be used to comply with NY LL48, IECC, ASHRAE 90.1 and Title 24, Part 6 daylight harvesting, demand response, bi-level switching and receptacle control requirements, Auto-ON/auto-OFF with local switch, Manual-ON/auto-OFF with local switch
Load Rating
20A 2400W @ 120V to Resistive, 20A 2400W @ 120V to General Purpose, 20A 2400W @ 120V to Incandescent, 20A 2400W @ 120V to Fluorescent, 16A 1920VA @ 120V to Electronic Ballasts, 16A 1920W @ 120V to LED, 20A 5540W @ 277V to Resistive, 20A 5540W @ 277V to General Purpose, 20A 5540VA @ 277V to Fluorescent, 16A 4430VA @ 277V to Electronic Ballasts, 16A 4430W @ 277V to LED, 1/2 HP @ 120V to Motor Load, 2 HP @ 240/277V to Motor Load, Suitable for general purpose plug load control - 20A 2400W @120V - Can be used to comply with NY LL48, IECC, ASHRAE 90.1 and Title 24, Part 6 daylight harvesting, demand response, bi-level switching and receptacle control requirements
Construction
Case: high impact, UL rated plastic - Relay: 60A rated magnetic latching relay; silver alloy contacts - Wire: 6" leads, 18AWG input; 14AWG load; LV connections: 8" leads 22AWG
Frequency
50/60Hz
Output Power
225mA, 24VDC, 5.4W
Grade
Commercial
Neutral Wire Connection
Required
Product Type
Power Pack
Operating Temperature
32° to 122°F (0° to 50°C)
Relay Type
Latching
Feature
Exclusive patented self-detect configurable local switch input - momentary or maintained, Configurable for auto-ON and manual-ON occupancy sensor inputs, Photocell ready
Control Input
2mA, 24VDC
Relative Humidity
0% to 95% non-condensing
Sensor Type
Accessory
Input Power
120-230-277VAC, 50/60 Hz
Listings
UL/cUL Listed, FCC Certified, NOM Certified, can be used to comply with NY LL48, IECC, ASHRAE 90.1 and Title 24, Part 6 daylight harvesting, demand response, bi-level switching and receptacle control requirements
Power Pack
Auto-ON, Manual-ON, local switch, and Photocell input
Voltage
120/230/277 VAC

Description

Power Pack, Compatible with Series OPP20, Lighting Technology LED, Communication Method Hard Wired, Input Voltage 120/208/220/230/240/277V AC, Output Voltage 24V DC, Output Current 225 mA, Compatible with Brand Leviton, Standards ASHRAE 90.1, RoHS Compliant, Title 24 Compliant, Overall Depth 1.43 in, Overall Height 2.4 in, Overall Width 3.81 in, Maximum Operating Temperature 122 Degrees F, Minimum Operating Temperature 32 Degrees F, Color Gray, Manufacturer Warranty 5 yr
