  6. Occupancy Sensor w/Photocell, 1000 sq ft

This item is Discontinued.

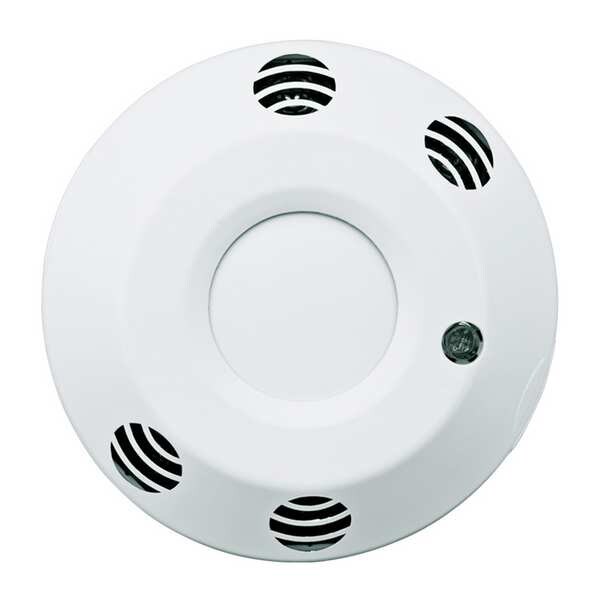

Leviton Occupancy Sensor w/Photocell, 1000 sq ft O2C10-UDW

Occupancy Sensor w/Photocell, 1000 sq ft (Discontinued)

  • Mfr # O2C10-UDW
  • Zoro # G504393513
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
O2C10-UDW
Zoro #
G504393513
UPC #
078477642740
Country of Origin
China

Dimensions

Coverage at Suggested Mounting Height
1,000 sq ft
Suggested Mounting Height - Motion Sensor
8 ft to 12 ft

Details

Use With - Motion Sensing and Dimming
1/3 HP Motor, 1/4 HP Motor, Electronic Ballast, Magnetic Ballast
Item - Motion Sensing and Dimming
Occupancy Sensor with Photocell
Communication Method - Motion Sensing and Dimming
Hard Wired
Sensing Technology
Photocell, Ultrasonic
Installation Location - Motion Sensor
Ceiling
Operating Voltage - Motion Sensing and Dimming
120/230/277 V AC
Color - Motion Sensing and Dimming
White
Time Delay Adjustment Method - Motion Sensor
Adaptive, Adjustable
Time Delay - Motion Sensor
30 sec to 30 min
Item
Occupancy Sensor
Max. Capacity @ 277VAC
6A/6AX (Electronic Ballast, Magnetic Ballast, 1/3 HP Motor)
Includes
(2) #6-32 Screw, Angled Light Pipe, Emergency Label, Low Voltage Connector, Mounting Plate, Tubing Barrier
Description/Special Features
High Inrush Stability, Industry-Exclusive "Fail-Safe" Circuitry, Industry-Exclusive Self-Configuring Local Manual Switch Input, Manual Switch and Emergency Override are Class 1 or Class 2 Circuits. Class 2 Circuits Provided for Flexibility, Output Short Circuit Protection, Presentation Mode Allows User to Turn Lights Off and Keep Them Off While the Room is Occupied, Robust and Reliable Mechanically Held 10a Latching Relay Provides Dependability and Robust Performance for All Load Types and Provides Energy Savings Over Electronically Held Relays, Vacancy Sensing Time Outs
Max. Capacity @ 120VAC
800V (Ballast), 800W ( Tungsten), 8A (Electronic Ballast)
Lighting Technology
Tungsten
Standards
CA Title 20/24 Compliant, CE Compliant, cUL Listed, NOM Certified, NY LLC48 Compliant, RoHS Compliant, UL 773A, UL 924

Description

Occupancy Sensor, Sensing Technology Photocell, Ultrasonic, Includes (2) #6-32 Screw, Angled Light Pipe, Emergency Label, Low Voltage Connector, Mounting Plate, Tubing Barrier, Lighting Technology Tungsten, Standards CA Title 20/24 Compliant, CE Compliant, cUL Listed, NOM Certified, NY LLC48 Compliant, RoHS Compliant, UL 773A, UL 924
