Shop LEVITON

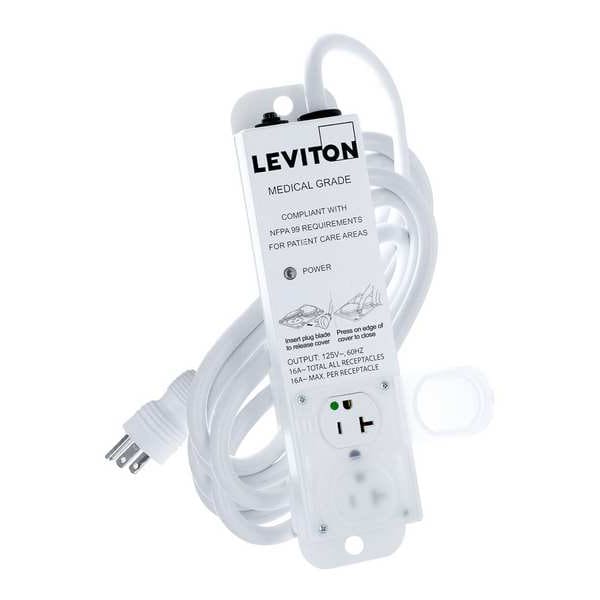

Outlet Strip, Medical Grade, 2 5-20R, 5-20P, 15 ft., White

  • Mfr # 5302M-2N5

  • Zoro # G204186743


product price:  $161.99
/ea
Free Shipping & Returns

Key Features

Type
Medical Grade
Total Number of Outlets
2
Receptacle Configuration
5-20R
Plug Configuration
5-20P
Color
White
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5302M-2N5
Zoro #
G204186743
UPC #
078477611661
Country of Origin
Mexico

Dimensions

Cord Length
15 ft.
Height
1 21/32 in
Length
10 3/4 in
Width
2 19/32 in
Wire Size
12 AWG
Outlet Strip Length
10 13/16 in

Details

Item
Outlet Strip
Type
Medical Grade
Total Number of Outlets
2
Number of Outlets
2
Receptacle Configuration
5-20R
Plug Configuration
5-20P
Color
White
Gauge/Conductor
12/3
Standards
NFPA: NFPA 99 2012 ed, UL 1363A and CSA C22.2: No. 21, UL 60601-1 and CSA C22.2: No.60601-1, UL 60950-1 and CSA C22.2: No. 60950-1
Max. Amps
20 A
Housing Material
Metal
NEMA Receptacle Configuration
5-20R
Power Indicator
Yes
Medical Grade
Yes
NEMA Plug Configuration
5-15P
NEC Cord Designation
#12/3 SJT
Voltage
125V AC
Hz
60 Hz
Mounting Style
Screw
Application
Medical
Trade Designation
SJT
Finish
Powder Coated
Medical Facility Use
Outside Patient Care Areas (UL 1363); Patient Care (UL 60601-1)
Special Features
Special Purpose Relocatable Power Tap (SPRPT)
Plug Style
Straight
Medical Facility Use UL Rating
UL 1363A, UL 1449, UL 60601-1
Frequency
60 Hz
Maximum Surge Current
27 kA
Communication Port
None
Includes
Locking Cover
Rated Energy Absorption
644 J
Number of Conductors
3
Maximum Current
20 A
Noise Attenuation
6dB to -29dB (100kHz to 100MHz)
Product Type
Outlet Strip

Description

Outlet Strip, Application Medical, Housing Material Metal, Total Number of Outlets 2, Max. Amps 20 A, Cord Length 15 ft, Number of Power Switches 0, Power Indicator Yes, Number of Outlet Rows 2, Receptacle Configuration Hospital Grade, Plug Configuration NEMA 5-20P, Wire Size 12 AWG, Mounting Style Screw, Color White, Medical Facility Use Outside Patient Care Areas (UL 1363); Patient Care (UL 60601-1), Number of Transformer Outlets 0, Number of Conductors 3, Voltage 125V AC, Length 10 3/4 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
