Shop LEVITON

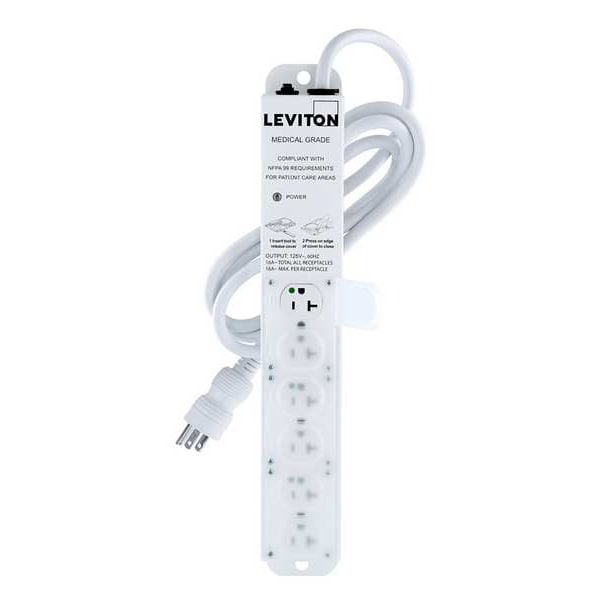

Outlet Strip, Medical Grade, 6 5-20R, 5-20P, 7 ft., White

  • Mfr # 5306M-2N7

  • Zoro # G704186748

product price:  $167.99
/ea
Free Shipping & Returns

Key Features

Type
Medical Grade
Total Number of Outlets
6
Receptacle Configuration
5-20R
Plug Configuration
5-20P
Color
White
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
5306M-2N7
Zoro #
G704186748
UPC #
078477611951
Country of Origin
Mexico

Dimensions

Cord Length
7 ft.
Width
2 19/32 in
Height
1 21/32 in
Length
16 7/8 in
Outlet Strip Length
16 7/8 in
Wire Size
12 AWG

Details

Item
Outlet Strip
Type
Medical Grade
Number of Outlets
6
Total Number of Outlets
6
Receptacle Configuration
5-20R
Plug Configuration
5-20P
Color
White
Gauge/Conductor
12/3
Standards
NFPA: NFPA 99 2012 ed, UL 1363A and CSA C22.2: No. 21, UL 60601-1 and CSA C22.2: No.60601-1, UL 60950-1 and CSA C22.2: No. 60950-1
Hz
60 Hz
Finish
Powder Coated
Mounting Style
Screw
NEMA Plug Configuration
5-20P
Voltage
125V AC
Outlet Surge Protection
No
Power Indicator
Yes
Trade Designation
SJT
Medical Facility Use
Outside Patient Care Areas (UL 1363); Patient Care (UL 60601-1)
NEC Cord Designation
#12/3 SJT
Application
Medical
Max. Amps
20 A
NEMA Receptacle Configuration
5-20R
Special Features
Special Purpose Relocatable Power Tap (SPRPT)
Medical Grade
Yes
Housing Material
Metal
Number of Outlet Rows
6
Noise Attenuation
6dB to -29dB (100kHz to 100MHz)
Rated Energy Absorption
644 J
Medical Facility Use UL Rating
UL 1363A, UL 1449, UL 60601-1
Communication Port
None
Frequency
60 Hz
Maximum Surge Current
27 kA
Product Type
Outlet Strip
Maximum Current
20 A
Number of Conductors
3
Plug Style
Straight
Includes
Locking Cover

Description

Outlet Strip, Application Medical, Housing Material Metal, Total Number of Outlets 6, Max. Amps 20 A, Cord Length 7 ft, Number of Power Switches 0, Power Indicator Yes, Number of Outlet Rows 6, Receptacle Configuration Hospital Grade, Plug Configuration NEMA 5-20P, Wire Size 12 AWG, Mounting Style Screw, Color White, Medical Facility Use Outside Patient Care Areas (UL 1363); Patient Care (UL 60601-1), Number of Transformer Outlets 0, Number of Conductors 3, Voltage 125V AC, Length 16 7/8 in

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
