Shop LEVITON

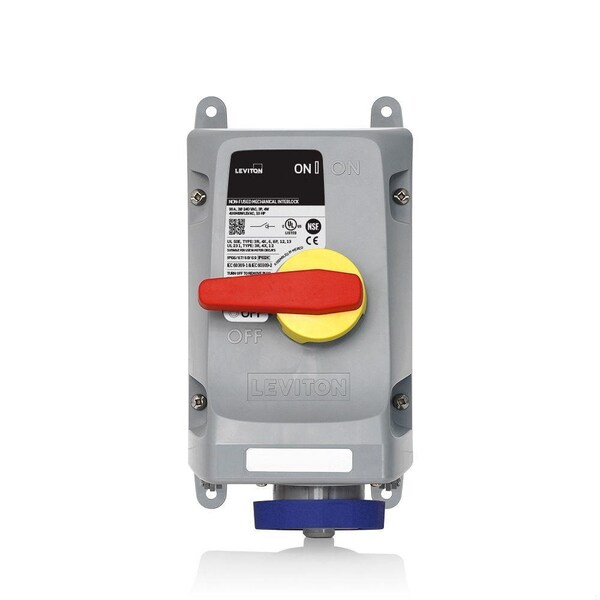

Pin and Sleeve Mechanical Interlock

  • Mfr # 430MI9WLEVAC

  • Zoro # G816091541

product price:  $1,164.99
/ea
Free Shipping & Returns

Key Features

Electrical Connection Type
Pin and Sleeve
NEMA Enclosure Rating
12, 3R, 4X
Current Rating
30 A
Voltage Rating
240V AC
Housing Material
PBT, Polycarbonate
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
430MI9WLEVAC
Zoro #
G816091541
UPC #
078477251447
Country of Origin
Mexico

Dimensions

Overall Height
12.16 in
Overall Width
8.86 in
Overall Depth
8.29 in

Details

Item
Mechanical Interlock
Electrical Connection Type
Pin and Sleeve
NEMA Enclosure Rating
12, 3R, 4X
Current Rating
30 A
Voltage Rating
240V AC
Housing Material
PBT, Polycarbonate
Phase
Three
Number of Poles
3
Number of Wires
4
UL 94 Flammability Rating
V-0
Maximum Operating Temperature
75 Degrees C
Horsepower Rating
10 hp
IP Rating
IP66, IP67, IP68, IP69K
Compatible with Series
LEV
Resistance Properties
UV/Sunlight Resistant, Watertight
Handle Material
PBT+PC with TPE Overmold
Minimum Operating Temperature
-40 Degrees C
Standards
CE, CSA C22.2 No. 94.1-07, IEC Rating 60309-1, 60309-2, 60309-4, NSF 14159-1, UL 1682, UL 1686, UL 50, UL 50E, UL 60947-4-1, UL 60947-1, UL 746
Fuse Protection
Non-Fused
Housing Color
Blue
Circuit Breaker
No
Locking Handle
Yes
Reverse Service
No
Contact Material
Nickel-Plated Copper Alloy
Series
LEV

Description

Pin and Sleeve Mechanical Interlock
