Shop LEVITON

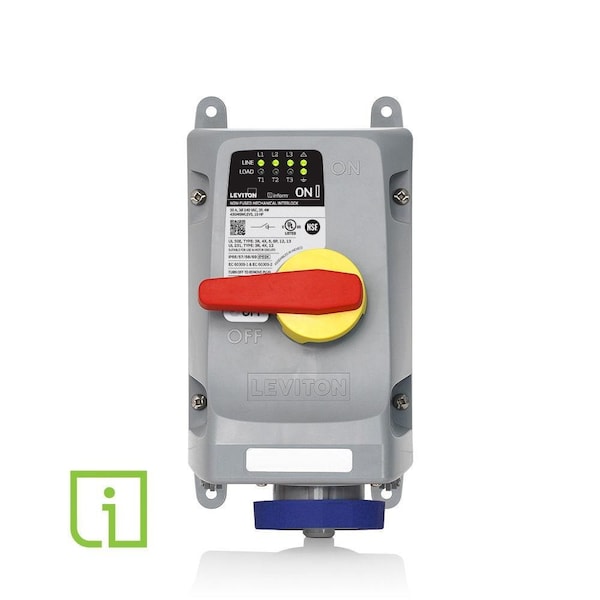

Pin and Sleeve Mechanical Interlock

  • Mfr # 430MI9WLEVS

  • Zoro # G716091450

product price:  $1,206.99
/ea
Free Shipping & Returns

Key Features

Overall Width
8.86 in
Handle Material
PBT+PC with TPE Overmold
IP Rating
IP66, IP67, IP68, IP69, IP69K
Phase
Three
Horsepower Rating
10 hp
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
430MI9WLEVS
Zoro #
G716091450
UPC #
078477380857
Country of Origin
Mexico

Dimensions

Overall Width
8.86 in
Overall Height
12.16 in
Overall Depth
8.29 in

Details

Item
Mechanical Interlock
Handle Material
PBT+PC with TPE Overmold
IP Rating
IP66, IP67, IP68, IP69, IP69K
Phase
Three
Horsepower Rating
10 hp
NEMA Enclosure Rating
12, 3R, 4X
Compatible with Series
LEV
Standards
CSA C22.2 No. 94.1-07, IEC Rating 60309-1, 60309-2, 60309-4, NSF 14159-1, UL 1682, UL 1686, UL 50, UL 50E, UL 60947-4-1, UL 60947-1, UL 746
Number of Poles
3
Voltage Rating
240V AC
Resistance Properties
UV/Sunlight Resistant, Watertight
Fuse Protection
Non-Fused
UL 94 Flammability Rating
V-0
Minimum Operating Temperature
-40 Degrees C
Electrical Connection Type
Pin and Sleeve
Housing Color
Blue
Housing Material
PBT, Polycarbonate
Current Rating
30 A
Maximum Operating Temperature
75 Degrees C
Number of Wires
4
Locking Handle
Yes
Series
LEV
Features
LED Status Indicator
Circuit Breaker
No
Reverse Service
No
Contact Material
Nickel-Plated Copper Alloy

Description

Pin and Sleeve Mechanical Interlock
