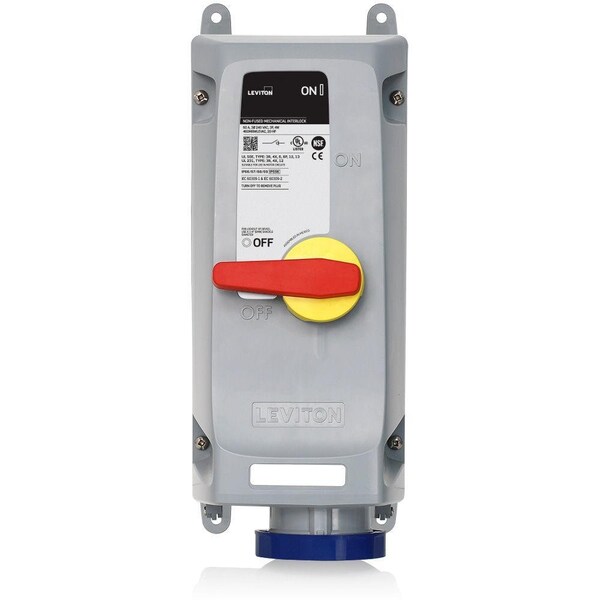

Pin and Sleeve Mechanical Interlock
Mfr # 460MI9WLEVAC
Zoro # G416091453
product price: $1,573.99
/ea
Free Shipping & Returns
Key Features
Electrical Connection Type
Pin and Sleeve
UL 94 Flammability Rating
V-0
Fuse Protection
Non-Fused
Maximum Operating Temperature
75 Degrees C
Overall Width
9.25 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
460MI9WLEVAC
Zoro #
G416091453
UPC #
078477380680
Country of Origin
Mexico
Dimensions
Overall Width
9.25 in
Overall Height
17.37 in
Overall Depth
9.4 in
Details
Item
Pin and Sleeve Mechanical Interlock
Electrical Connection Type
Pin and Sleeve
UL 94 Flammability Rating
V-0
Fuse Protection
Non-Fused
Maximum Operating Temperature
75 Degrees C
IP Rating
IP66, IP67, IP68, IP69K
Phase
Three
Number of Wires
4
Housing Color
Blue
Standards
CE, CSA C22.2 No. 94.1-07, IEC Rating 60309-1, 60309-2, 60309-4, NSF 14159-1, UL 1682, UL 1686, UL 50, UL 50E, UL 60947-4-1, UL 60947-1, UL 746
Voltage Rating
240V AC
Compatible with Series
LEV
Minimum Operating Temperature
-40 Degrees C
NEMA Enclosure Rating
12, 3R, 4X
Handle Material
PBT+PC with TPE Overmold
Housing Material
PBT+PC
Resistance Properties
UV/Sunlight Resistant, Watertight
Horsepower Rating
7 1/2 hp
Current Rating
60 A
Contact Material
Nickel-Plated Brass
Number of Poles
3
Description
Pin and Sleeve Mechanical Interlock
