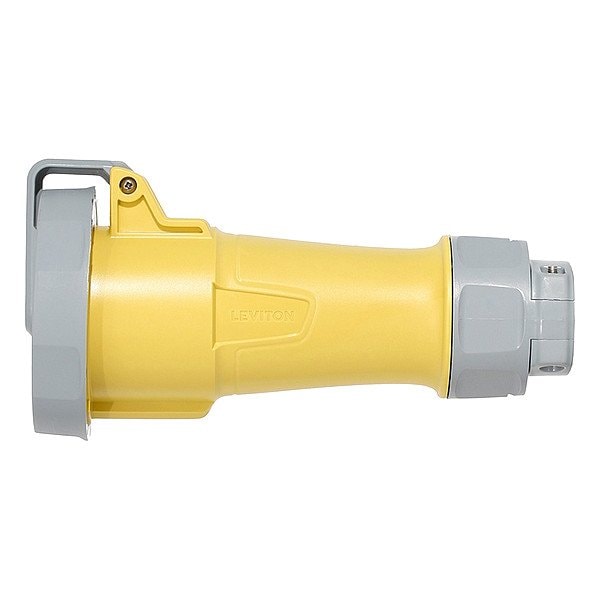

Pin & Sleeve Connector, 30 A, 125V AC, Single Phase, 2 Pole, IEC Grounding

  • Mfr # 330C4WLEV

  • Zoro # G215554876

product price:
$
240.99
/ea
Free Shipping & Returns

Key Features

Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
330C4WLEV
Zoro #
G215554876
UPC #
078477921609
Country of Origin
Mexico

Dimensions

For Maximum Cable Diameter
1-1/8 in
For Minimum Cable Diameter
0.58 in
Maximum Wire Size
8 AWG
Face Diameter
1.819 in
Overall Length
7.84 in
Minimum Wire Size
10 AWG
Wire Rope Length
7.84 in
Length
7.84 in

Details

Item
Pin & Sleeve Connector
Current Rating
30 A
Voltage Rating
125V AC
Phase
Single
Number of Poles
2
Number of Wires
3
IP Rating
IP66, IP67, IP68, IP69K
Wire Connection Type
Screw Terminals
Connection Orientation
Straight
Grounding Style
IEC
Housing Color
Yellow
Cap Type
Flip-Up Cap, Screw-On Cap
Standards
CE, CSA C22.2, IEC Rating 60309-1 and 60309-2, NOM, UL 1686 C2, UL 1682
Resistance Properties
Corrosion Resistant, UV Resistance
Switch Rated
No
Features
Hex Style Socket Screws for Terminals
For Environment
Industrial
Housing Material
Nylon
UL 94 Flammability Rating
HB, V-0
Power Indicating Light
No
Reverse Service
No
For Location
Outdoor
Shrouded
Yes
Market
Industrial
Grounding
Grounded
NEMA Enclosure Rating
12, 3R, 4X, 6P
Hazardous Location Specification
Not Rated
Series
LEV
Horsepower Rating
15 hp

Description

LEV Series IEC Pin and Sleeve Connector
